LUMINES TALIA M4 10-0371-20 is a white lacquered mounting profile for the TALIA ceiling system. This version is 2020 mm, or 2.02 m, long. Its stepped cross-section and side flanges provide a mounting structure for the lighting profile between ceiling boards. It is not a complete light fitting or a component that should be chosen solely by the width of an LED strip.
Plan it as part of the TALIA assembly
M4 is the structural mounting component intended for the TALIA profile. The manufacturer's installation drawing uses screws, the ROSET auxiliary profile and a TALIA inter-profile connector. Ceiling planning therefore needs to account for how these parts fit together, rather than only the length of the finished line of light.

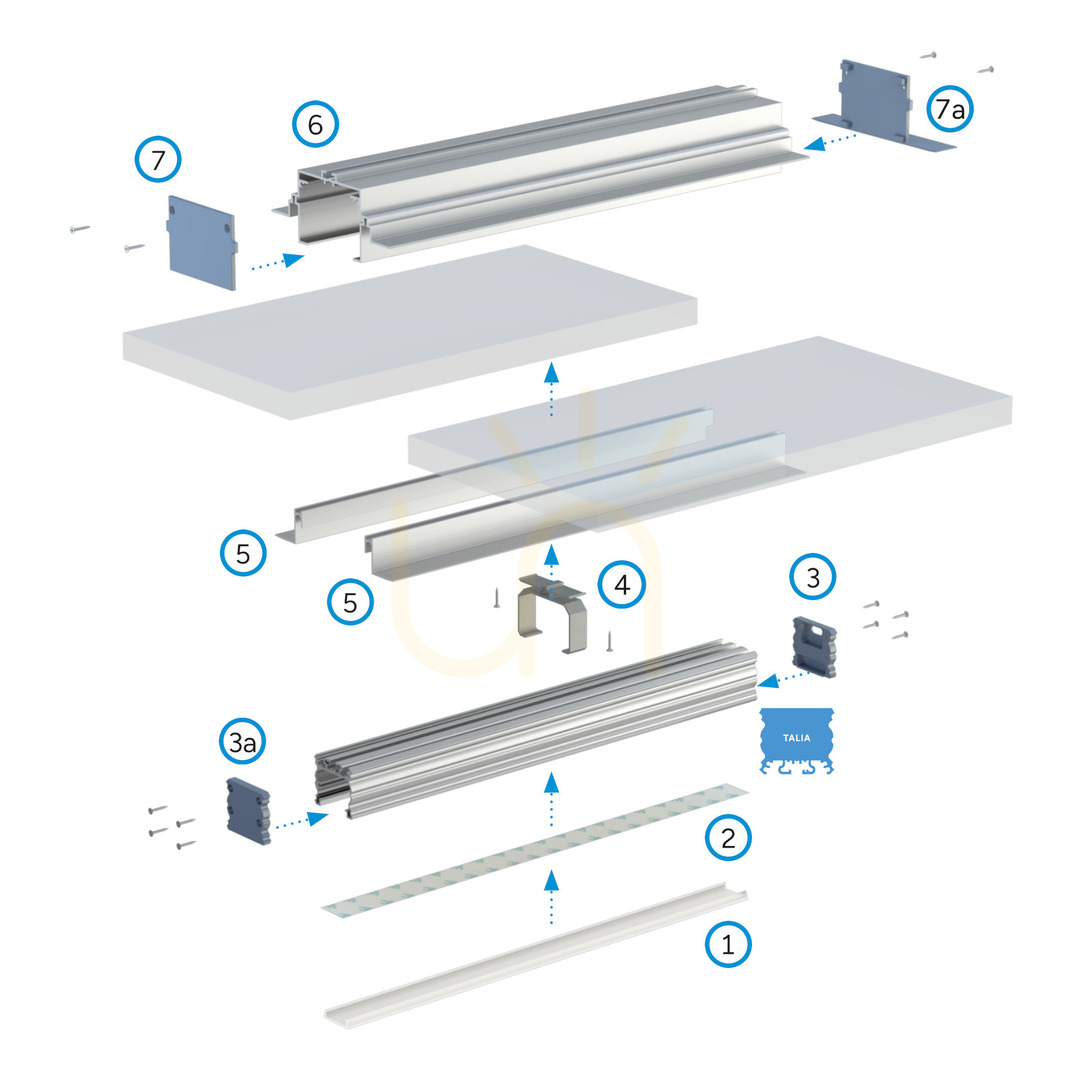

The system diagram also shows a DOUBLE cover, LED strips and matching end caps. It explains the relationship between components; it is not a packing list for this mounting profile. Light colour and brightness depend on the selected lighting configuration, not on M4 itself.
Allow for the full cross-section

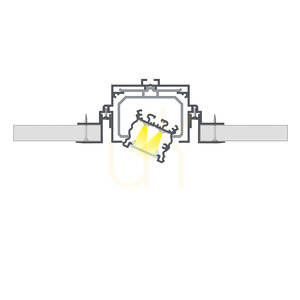

The overall width is 107.4 mm and the overall height is 46.7 mm. These outside dimensions include the side flanges and the projection at the top. They must not be treated as ceiling cut-out dimensions. Design the gap between boards using the technical drawing and the complete system layout.
The white finish and straight, linear form suit modern and minimalist interior schemes. It can be considered for TALIA ceiling lighting in a living room, kitchen, dining room, bedroom, entrance hall or office where the design provides for this compatible assembly. Selecting M4 does not replace specifying the light sources, power supply and remaining installation components.
