Motion and twilight sensor IS 3360-E KNX V3.1 DE

Steinel IS 3360 KNX V3 Ceiling Sensor IP20 White Square Product Code 079642

Benefits of the IS 3360 KNX V3 sensor in building automation

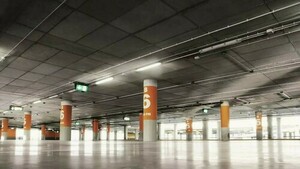

• Detection range for large spaces - A tangential detection range of up to O 40 m (1257 m2) and a radial detection range of up to O 8 m (50 m2) ensure effective monitoring of large areas such as parking lots, warehouse halls or open spaces.
• Optimal installation in suspended ceilings - Mounting heights of up to 4 meters allow for ideal adaptation to high usable spaces while maintaining detection efficiency.
• Advanced integration with KNX systems - Interfacing with the KNX bus enables comprehensive management of lighting, HVAC, logic functions and building occupancy control.
• Energy efficiency and user comfort - Light intensity control from 0-100%, TEACH twilight function and energy-efficient power consumption promote energy savings.
• Simple configuration and convenient operation - Configuration of the device is possible with the Smart Remote app or the RC6 KNX and RC7 KNX remotes, which significantly speeds up system start-up.

Functions and applications of the IS 3360 KNX V3 sensor

• 360° detection for full space control - Ideal for applications in offices, warehouses, multi-story parking lots or common areas in commercial buildings.
• Programmable timer - Adjustable from 5 seconds to 15 minutes to customize operation.
• Protection against detection dead zones - A crawl protection function increases detection efficiency in difficult zones of a space.
• Aesthetically pleasing designin classic white - The square design in RAL 9003 harmoniously blends into elegant and functional interiors.
• Resilient and reliable operation - IP20 protection class and an operating range of -20°C to +50°C guarantee stable operation in various environmental conditions.

Technical and logistical data of the product

• Device type: infrared presence detector (PIR) with light sensor
• Detection technology: passive infrared + light sensor
• Detection angle: 360°
• Detection range: tangential O 40 m (1257 m2), radial O 8 m (50 m2), presence O 3 m (7 m2)
• Mounting height: 2,5 - 4 m
• Ambient brightness range: 2 - 1000 Lux
• Operating time settings: 5 seconds - 15 minutes
• Protection class: IP20
• Operating temperature: -20°C to +50°C
• Color: RAL 9003 (white)
• Housing material: plastic
• Power supply: KNX bus
• Connection type: Master/Slave
• Power consumption: < 1 mW
• Rated current: 12.5 mA
• KNX functions: photocell controller, basic light level function, light level, HVAC output, constant light control, 2x light output, presence output, day/night function, logic gate
• Optional accessories: Smart Remote, RC6 KNX, RC7 KNX, black sensor cover (EAN 4007841056728)
• Product code: 079642
• EAN: 4007841079642
• Warranty: 5 years
