Motion and twilight sensor IS 3360-R KNX V3.1 DE

Steinel IS 3360 KNX V3 Ceiling Presence Sensor IP20 White Round Product Code 079666.

Benefits of the IS 3360 KNX V3 sensor in building automation

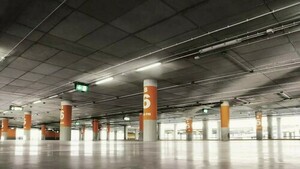

• Wide detection range for large spaces - Tangential detection range of up to O 40 m (1257 m2) and radial detection range of up to O 8 m (50 m2) is ideal for large spaces such as warehouse halls, multi-level parking lots or open spaces.
• Installation in suspended ceilings up to 4 m high - The sensor is designed for convenient installation in suspended ceilings, ensuring maximum detection performance in spaces of greater height.
• Advanced KNX integration - The device fully supports KNX, enabling control of lighting, HVAC, brightness levels, and use of logic functions and building automation scenarios.
• Energy efficiency and ease of use - Functions such as lighting level setting (0-100%), TEACH twilight and low power consumption help optimize power consumption and increase user comfort.
• Easy setup and quick operation - The ability to set up via the Smart Remote app or the RC6 KNX and RC7 KNX remote controls significantly speeds up the startup and daily operation of the sensor.

Functions and applications of the IS 3360 KNX V3 sensor

• 360° detection for complete space control - Provides reliable monitoring in offices, warehouses, commercial spaces and common areas.
• Adjustable device run time - Programmable run time from 5 seconds to 15 minutes allows users to customize functionality.
• Protection against dead zones - The anti-crawl function eliminates unwanted zones without detection, increasing the effectiveness of operation.
• Aesthetically pleasing designin white RAL 9003 - The round design fits perfectly into modern commercial and office interiors.
• Resistance to harsh environments - IP20 protection class and an operating temperature of -20°C to +50°C ensure reliable operation in a variety of environments.

Technical and logistical data of the product

• Device type: infrared presence detector (PIR) with light sensor
• Detection technology: passive infrared + light sensor
• Detection angle: 360°

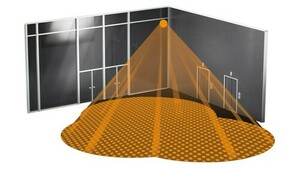

• Detection range: tangential O 40 m (1257 m2), radial O 8 m (50 m2), presence O 3 m (7 m2)
• Mounting height: 2,5 - 4 m
• Ambient brightness range: 2 - 1000 Lux
• Operation time settings: 5 seconds - 15 minutes
• Protection class: IP20
• Operating temperature: -20°C to +50°C
• Color: RAL 9003 (white)
• Housing material: plastic
• Power supply: KNX bus
• Connection type: Master/Slave
• Power consumption: < 1 mW
• Rated current: 12.5 mA
• KNX functions: photocell controller, basic light level function, light level, HVAC output, constant light control, 2x light output, presence output, day/night function, logic gate
• Optional accessories: Smart Remote, RC6 KNX, RC7 KNX, black sensor cover (EAN 4007841056742)
• Product code: 079666
• EAN: 4007841079666
• Warranty: 5 years
