NORLYS Moss 6626GR LED Garden Spotlight with Ground Spike, 4 W, Graphite

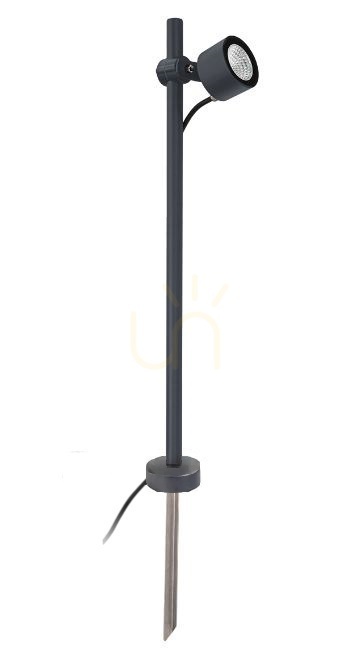

NORLYS Moss 6626GR is a graphite garden spotlight with a single cylindrical head, a slender upright and a ground spike. The RAL 7016 finish combines powder-coated cast aluminium, stainless-steel components and clear safety glass in front of the light source.

Aim the beam at a selected feature

The integrated LED module produces warm-white light at 3000 K. Luminaire output is 389 lm at 4 W, with a symmetrical 36° beam. This distribution concentrates light on a selected part of the planting or an architectural detail rather than acting as a wide floodlight for the whole property. The direction can also be adjusted in the vertical plane, allowing the head to be aimed according to the position of the feature being illuminated.

The luminaire supports both Trailing Edge and Leading Edge phase dimming. If dimmed operation is planned, select a controller suitable for the fitted LED module. Dimming capability does not itself mean that a controller is supplied. Module replacement is a professional servicing task, not the same as changing a conventional light bulb.

Plan the ground mounting and connection

The upright and ground spike are supplied with the light. The manufacturer's drawing specifies an overall height of 85 cm, including the section inserted into the ground, and a width of 16 cm. The full 85 cm should therefore not be treated as the height above soil level. Consider the head position and cable route together when deciding where to install it.

The supplied H05RN-F 3G1 cable is 3 m long and requires connection inside an appropriately selected electrical junction box. The box and other accessories are purchased separately. A qualified electrician should make the 220–240 V connection in accordance with the installation instructions.

Restrained form for outdoor settings

IP65 protection and the manufacturer's stated purpose support use in gardens and private grounds. The directional head can also highlight facade details. Cylindrical components, a narrow upright and the absence of ornament suit modern and minimalist outdoor layouts.
