Surface spotlight SpectrumLED SPOT M WLD+20017_CCT LED 10 W CCT 30° white IP20

SpectrumLED SPOT M surface spotlight

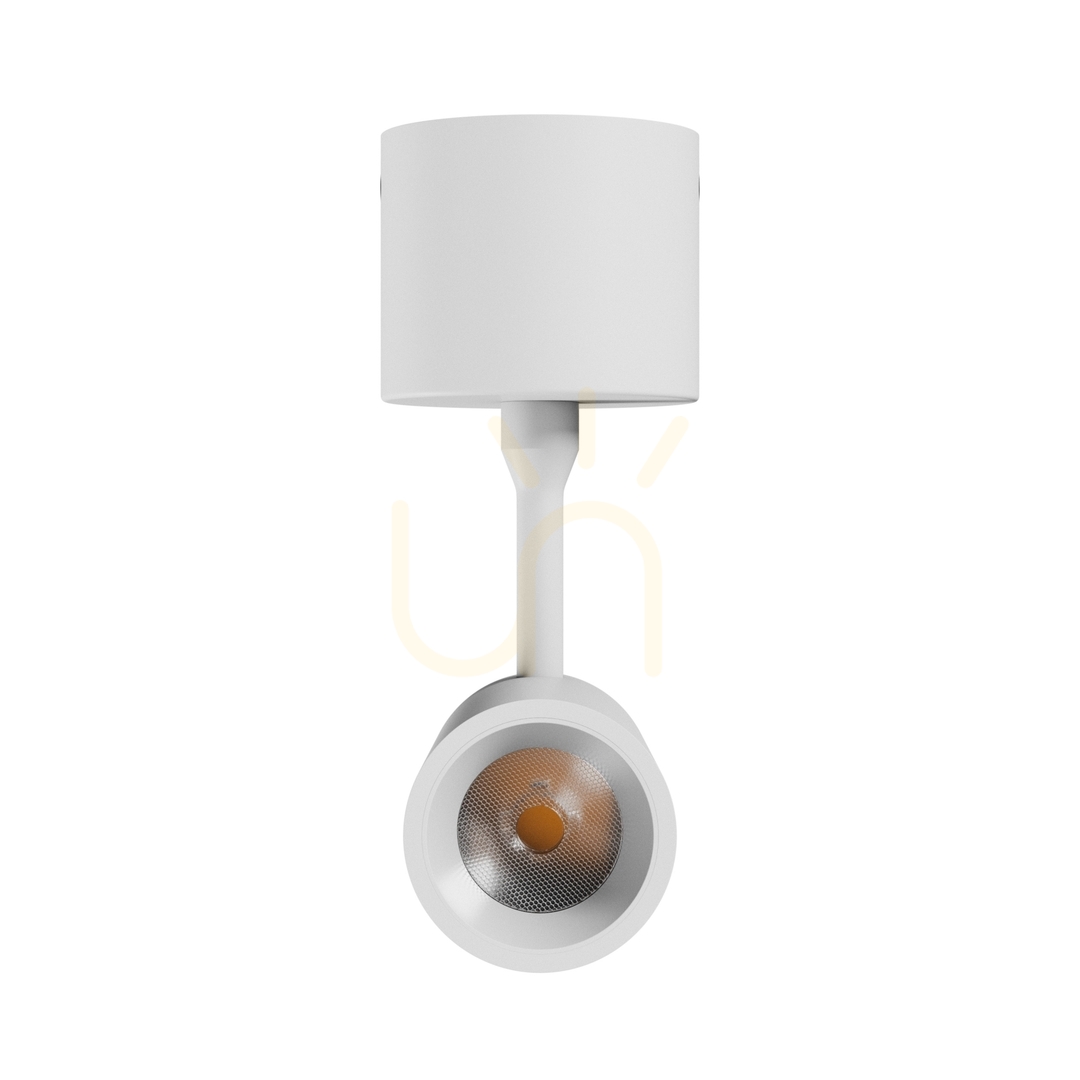

WLD+20017_CCT is a white surface-mounted spotlight in the SPOT M family. A round canopy drops on a short arm into a cylindrical head that can be aimed at a shelf, a mannequin or a picture. The body is aluminium and polycarbonate, finish white, rating IP20. The manufacturer states 44 × 145 × 185 mm plus a 60 × 50 mm base. It is an indoor luminaire, not a bathroom fitting and not a track head – the canopy screws straight to the ceiling.

Three whites on a CCT switch

The built-in 10 W LED runs at 230 V, 50 Hz. A CCT switch selects 2700 K, 3300 K or 4000 K without changing the source. Luminaire flux is 700 lm, source flux 955 lm, beam 30°, intensity 2300 cd, CRI above 90 and SDCM max. 5. That narrow cone is for accent in a shop, office or hotel corridor, not for even living-room lighting. The fitting is not dimmable. Efficacy 96 lm/W, 10 kWh/1000 h, power factor 0.58, current 70 mA. Class II, no earth conductor. Life 50 000 h, 25 000 cycles, 5-year warranty. Working range −20 to +40 °C.

Fixing and limits

A qualified electrician should install it with the supply isolated. Fix the canopy to the ceiling, then set the head angle. Do not cover the body with insulation and do not use it outdoors. IP20 does not protect against water. The model is not dimmable and does not belong on 48 V tracks or in the SHIFT system – it is a stand-alone 230 V luminaire.

Where it earns its place

SPOT M works over a counter, in a boutique, an office building or a study when a tight cone must pick out goods or a picture. In a restaurant it can mark a table or a wall, but it will not replace general lighting. Several pieces at even spacing organise a display without a track.

A plain technical outline

The white cylinder and smooth canopy read as modern and minimal. There is no ornament – the point is the direction of the beam. By day the fitting is a quiet ceiling detail; after dark the 30° cone is what you notice.
