Steinel IR presence and dusk sensor QUATTRO 8m COM1 DE

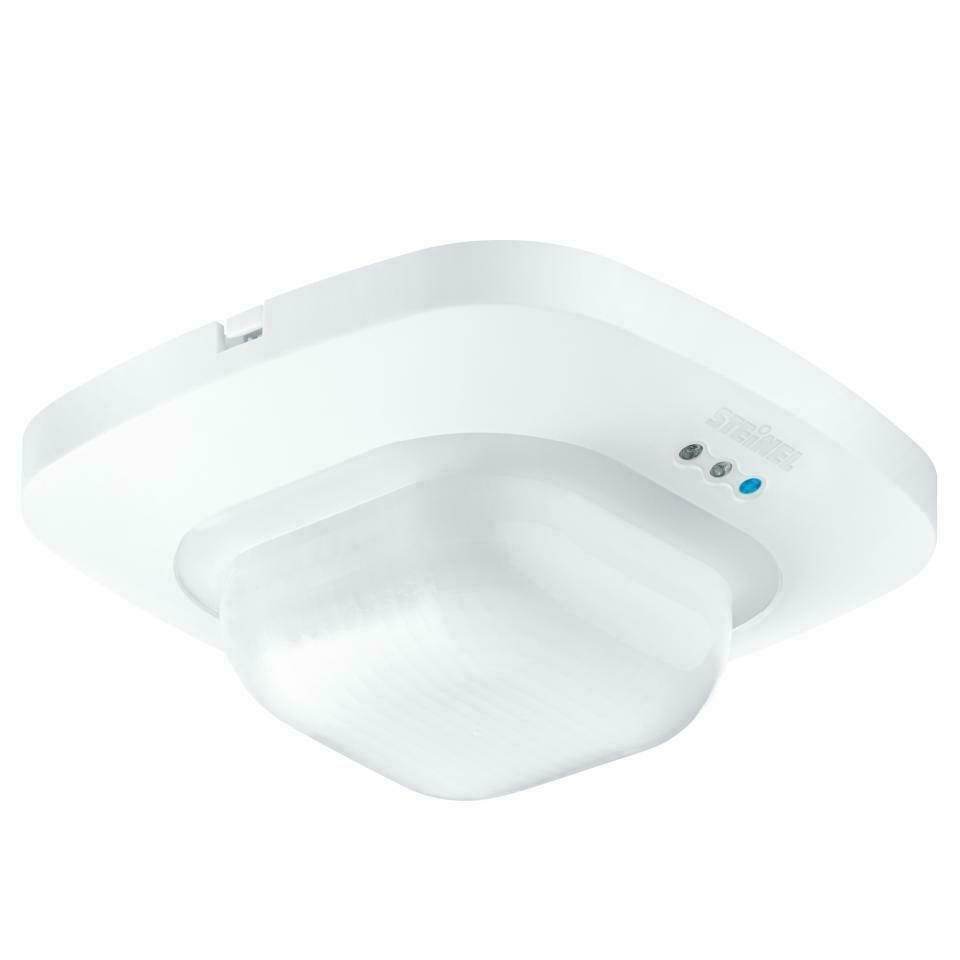

Steinel IR Quattro 8m COM1 Ceiling Sensor IP20 White Product Code 079345

Benefits of using the IR Quattro COM1 sensor in building automation

• Compact presence sensor for small spaces - The Quattro COM1 IR sensor is designed for presence and motion detection in spaces such as single offices, toilets, utility rooms, bathrooms or stores. A square presence detection zone of 4 × 4 m (16 m2) guarantees precise detection in confined spaces.
• Ceiling mounting up to 8 meters high - The ability to install from 2.5 to 8.0meters (optimum height of 2.8 meters) allows the sensor to adapt to different mounting conditions and interior types.
• IQ-Mode technology and TEACH function - The sensor automatically learns the level of dusk and recognizes the presence of users using the built-in motion sensor. 1,760 switching zones ensure high precision detection.
• High compatibility with various light sources - The sensor supports fluorescent and LED lights, enabling seamless control of lighting up to 2,000 watts (halogen) and up to 600 watts (LED > 8 watts).
• Reliable operation and durability - IP20-rated plastic housing and temperature resistance from 0 to +40°C allows for safe and long-lasting use indoors.

Functions and applications of the Quattro COM1 IR sensor

• 360° detection - full coverage with no dead zones
• Operating modes: automatic, semi-automatic, test, manual ON/OFF
• Possibility of master/master and master/slave connection of up to 10 sensors
• TEACH function - automatic twilight threshold setting
• Ideal for WCs, bathrooms, kitchenettes, social and technical areas

Technical and logistical data of the product

• Device type: infrared presence sensor (PIR) with light sensor
• Detection technology: passive infrared + light sensorDetection
• angle: 360°
• Presence range: 4 × 4 m (16 m2)
• Tangential range: 7 × 7 m (49 m2)
• Radial range: 5 × 5 m (25 m2)
• Switching zones: 1760
• Mounting height: 2.5 - 8 m (optimally 2.8 m)
• Power supply: 230 V / 50 - 60 Hz
• Load capacity of fluorescent lamps: uncorrected / series correction / parallel correction - 1000 VA
• Relay output: 1 × 2000 W (low-voltage lamps)
• LED load capacity: < 2 W - 100 W, 2-8 W - 300 W, > 8 W - 600 W
• TEACH function: yes
• Segment masking: no
• Fixed lighting control: no
• Mechanical adjustment: yes
• Electronic adjustment: no
• Connection type: Master/master, master/slave
• Number of connections: max. 10 sensors
• Operating temperature: 0 - 40 °C
• Color: white (RAL 9010)
• Housing material: plastic
• Dimensions: 113 × 120 × 120 mm
• Product code: 079345
• EAN: 4007841079345
• Warranty: 5 years
