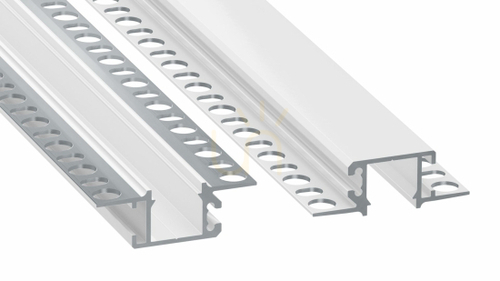

LED profile LUMINES type MONO white lacquered 2 m

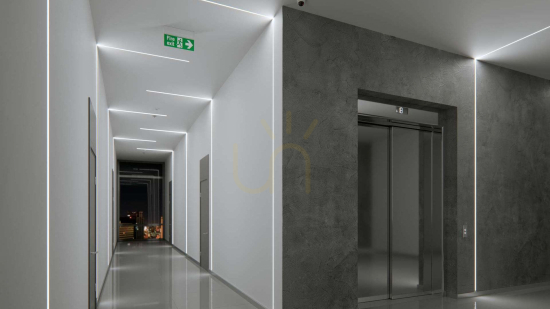

MONO aluminum profile is a low recessed profile, mounted directly on the wall between two G-K boards. For use in modern residential architecture in public buildings

LED strip width:
up to 12 mm

Color versions:

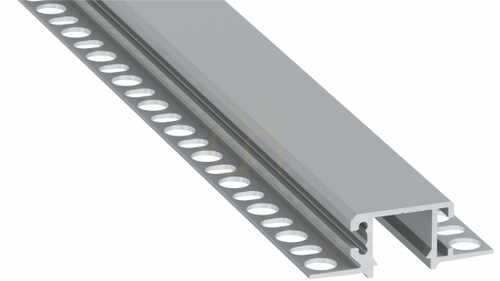

- silver anodized profile,
- white lacquered profile (RAL9016)
- raw profile

Accessories for MONO LUMINES aluminum profile

SHADES (shades):
- BASIC lampshade made of PVC plastic - milky, frosted, transparent
- PMMA plastic Basic lampshade - transparent, frosted milky, frosted milky, black
- diffuser Basic made of PC plastic - transparent, frosted, milky
(top-mounted press-on)

CAPS:
- aluminum, with hole in 4 color versions (white, silver, black, gray)
- made of plastic, with a hole in 4 color versions (white, black, lacquered silver, gray)

ADDITIONAL ACCESSORIES:
straight connector
90 degree angle connector
transverse angle connector
120 degree angle connector

Installation instructions for MONO profile with BASIC shade recessed between panels

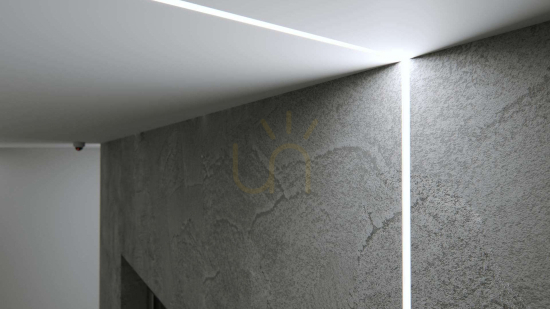

The final result of the installation of the MONO profile with BASIC lampshade recessed between the panels and then plasteredA

Steps of installation using the MONO profile in the built-in [1.paint, 2.plaster, 3.. grid, 4. gypsum board]

Schematic of assembling the elements of a built-in lighting system using the MONO profile (1) BASIC lampshade, (2) LED strips, (3) MONO plugs with hole, (4) straight connector
