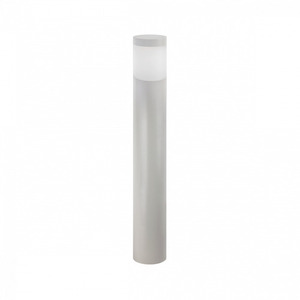

Lillesand 1380AL is a cylindrical bollard 12 cm in diameter and 85 cm tall, made of cast aluminium powder-coated in light grey (RAL 9006). The top 14 cm is a satin PMMA diffuser that spreads the light evenly all the way round.
Light source and control
The fitting has an E27 socket and takes an LED lamp of up to 9 W in an A55–A60 shape; the diffuser has no room for a wider globe or a long candle lamp. No lamp is included, so the colour and brightness are your choice, and the lamp is changed without a service call.
The maker also designed this bollard for the Signify WiZ Pro A60 E27 TW 8 W lamp. With it fitted, the light is controlled from an app over Bluetooth and Wi-Fi, including colour temperature from 2700 to 6500 K. Wi-Fi has to reach the spot where the bollard stands, so check the range before installing.
Installation and wiring
The bollard is fixed with three bolts through ø9 mm holes spaced at 120° on a ø65 mm circle. The concrete anchor 205, ground anchor 206, concrete foundation adapter 206S and mounting adapter 3080GA are sold separately. The terminals take conductors up to 2 × 2.5 mm² and allow the supply to be looped on, with a cable diameter of 7–10.5 mm, so several bollards along a path run on one line. Protection class II means no earth conductor is required.
Where it fits

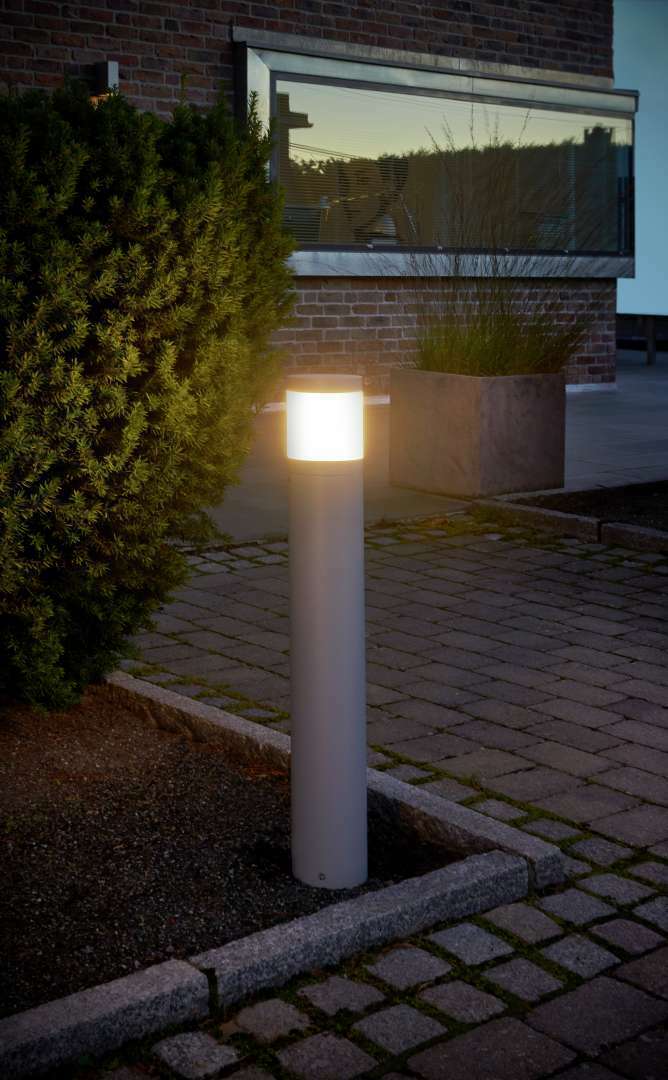

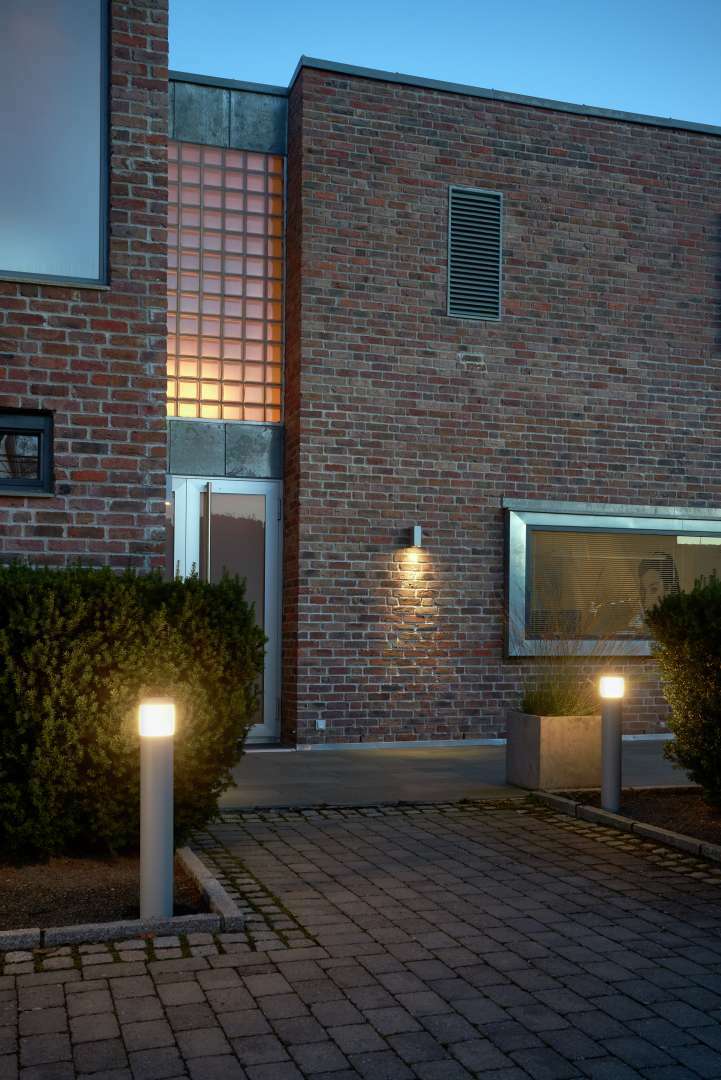

Norlys intends Lillesand for private grounds and public areas, and its applications include gardens, terraces, streets and the grounds of hotels and restaurants. IP55 and IK08 impact resistance allow it to stand beside a driveway or pavement. ULOR is 41%, so a good share of the light goes upward, which is worth considering when placing it below windows. The plain cylinder without ornament is a Scandinavian-style form.
