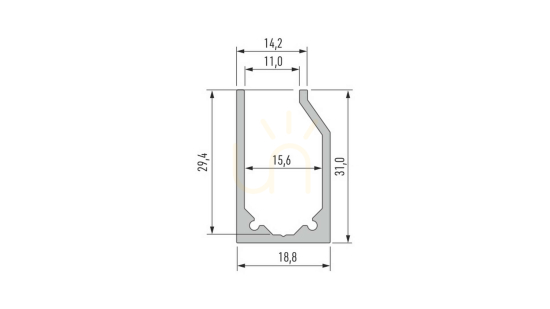

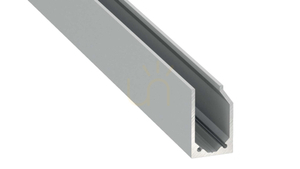

LUMINES LED profile type I10 silver anodized 2 m

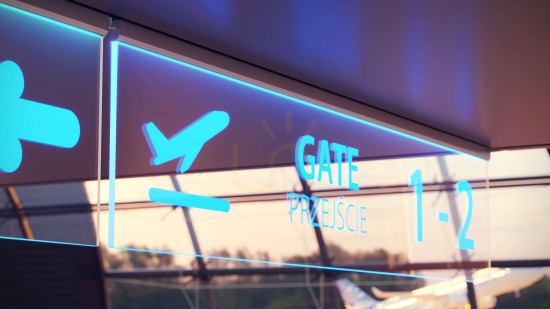

Glazing profile I10 is an aluminum surface, glazing profile. For mounting and illuminating store shelves, signage and decorative signs.

The profile comes in two color versions:
- silver anodized profile,

Profile available in sections: 1000 mm, 2020 mm, 3000 mm.
Possibility to purchase longer sections after contacting the service office.

Installation method:
- with the use of mounting screws
- with the use of assembly slings

Accessories for glass profile I10

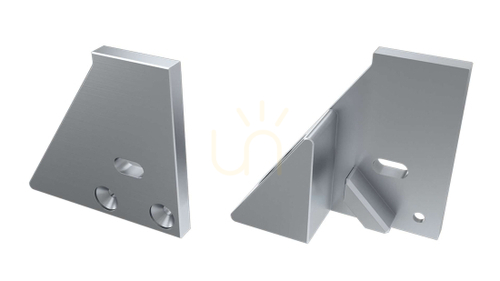

SEALS :
Made of plastic in silver color.
Available in variant with hole, without hole, with or without support and in "right" and "left" version.

Additional accessories:
- Rubber for I6 / I10 profiles (black)
- Slings

Diagram of the installation sequence of I6/I10 glazing profiles using double-sided tape, FARI auxiliary profile and mounting screw

The final result of the installation of the I10 profile with glass as a fixed element attached to the vertical surface using dedicated plugs with supports
