LUMINES LOGI surface-mounted wall LED profile white lacquered 1 m 10-0501-10

LUMINES LOGI 10-0501-10 is a white lacquered LED profile supplied in a 1 m length for surface mounting on a wall. Its angled cross-section provides space for LED strips and a cover, while the lower edge forms part of the finished wall detail. It is a component for linear lighting, not a complete luminaire with a predetermined light colour or output.

Planning a light line into the wall

LOGI is intended for decorative illumination of vertical surfaces and for constructing linear wall lights. The manufacturer specifies residential, commercial and public interiors as suitable settings. In a living room, corridor or hotel interior, consider it as part of the wall design rather than automatically treating it as task lighting for a particular worktop.

The white finish and straight, unornamented form suit modern and minimalist interiors. The appearance of the completed light line depends on the chosen LED strip and cover. A white profile does not, by itself, determine the colour temperature of the emitted light.

Dimensions and installation space

This variant is 1000 mm long. The LOGI cross-section measures 40.6 mm wide and 63.8 mm high, allowing you to check the space needed before the wall finish is completed. The datasheet identifies room for two LED strips, each up to 12 mm wide.

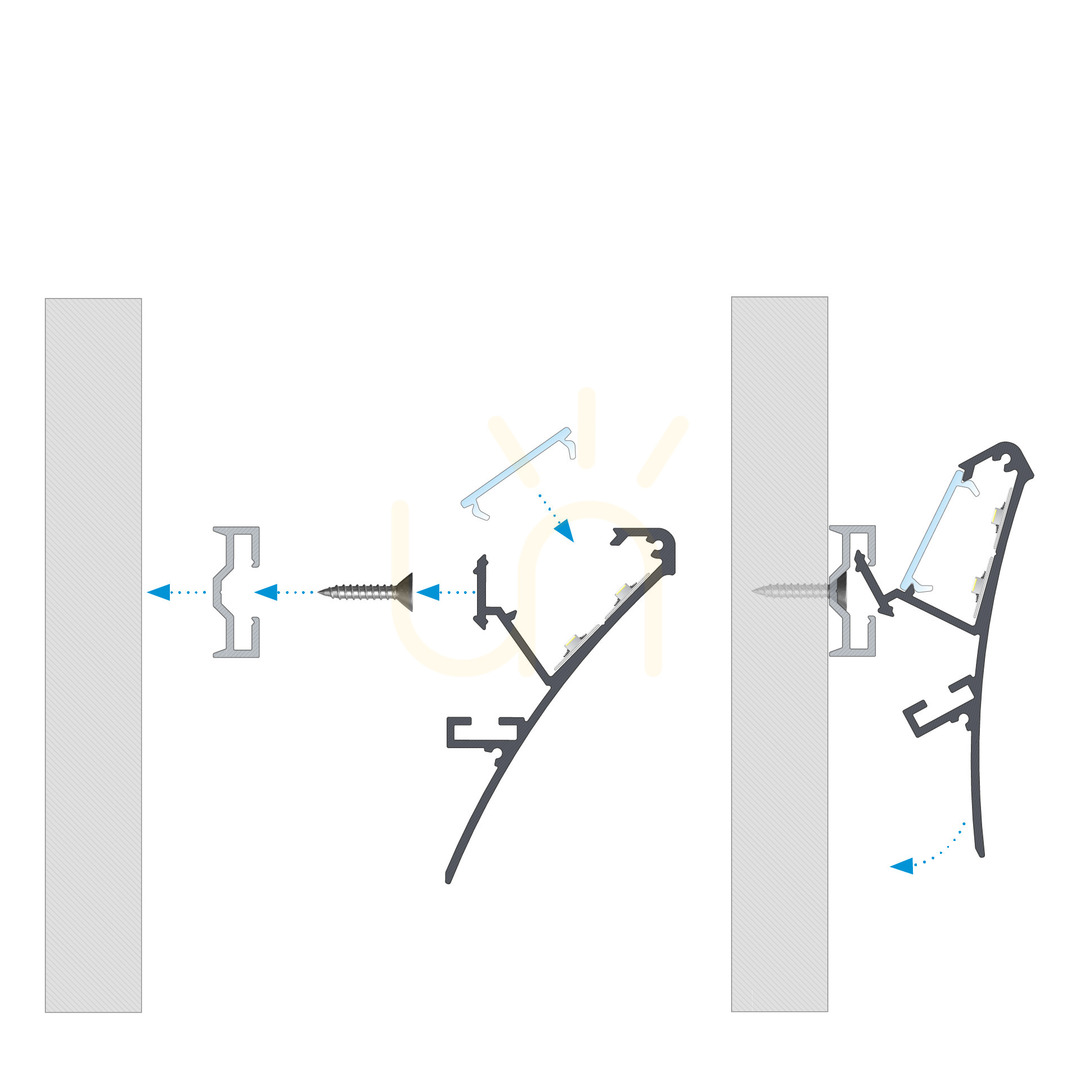

The installation diagrams use the SPARO mounting profile and show part of the construction being finished with plaster. The power supply sits outside LOGI, so its location and cable route need to be considered alongside the position of the light line. The system is not intended for sealing or for installations that vehicles drive over.

Choosing matching LOGI components

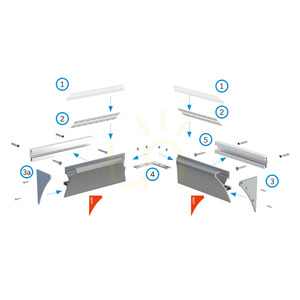

Compatible covers belong to the DOUBLE family. Their transparency and finish vary, making the cover a separate choice from the white profile itself. The manufacturer also lists left and right LOGI end caps, versions with or without a hole, and a straight connector.

When assembling the lighting system, check that the strip, cover, end caps and mounting parts are compatible with LOGI. Article 10-0501-10 identifies this white metre-long section, not a longer profile or a different finish.
