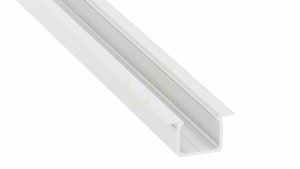

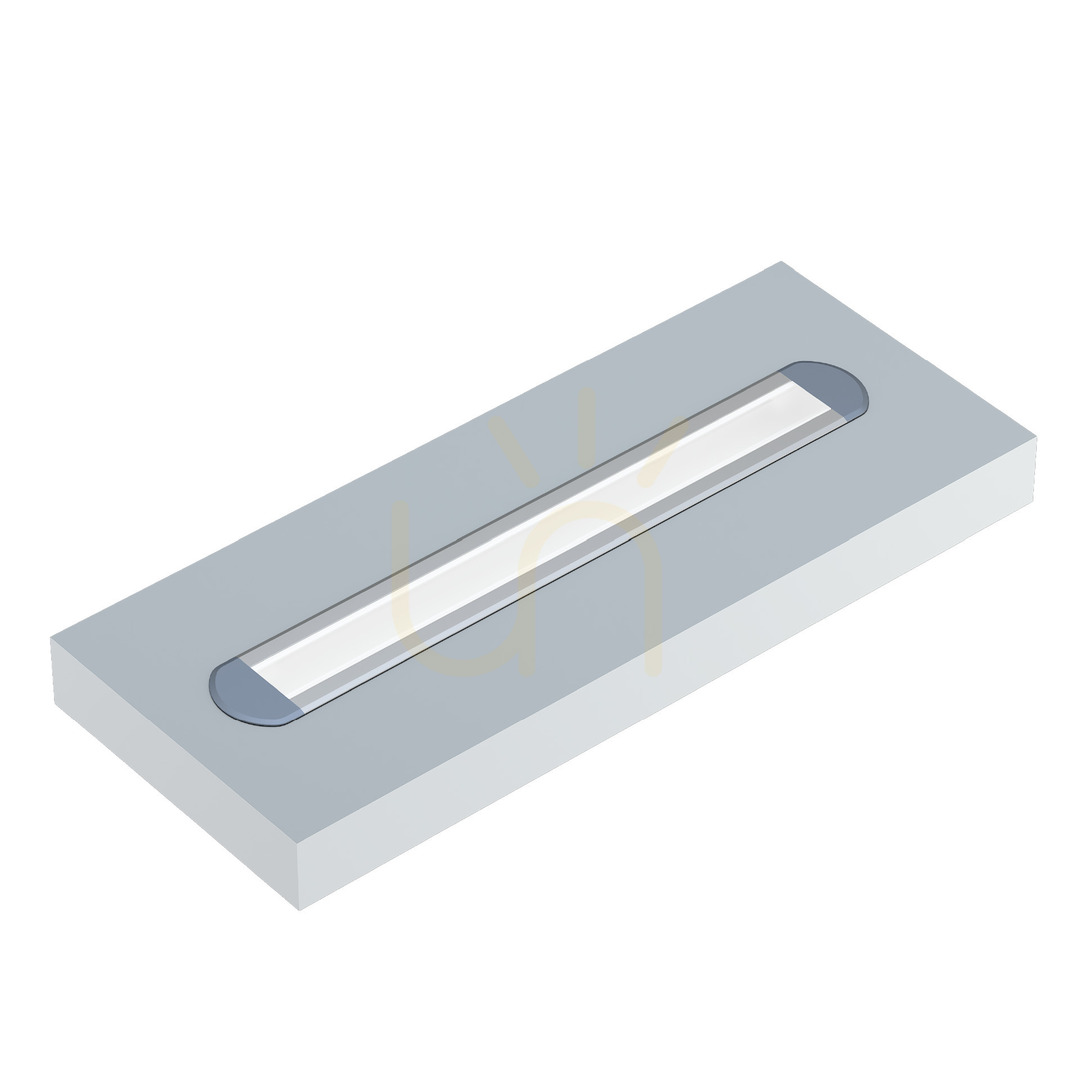

LUMINES U 10-1031-20 is a white lacquered recessed profile for LED strips, supplied as a 2.02 m length. Its side flanges overlap the edges of the prepared opening, leaving a narrow profile border at the surface and a seating area for a BASIC cover.
A 2020 mm length for recessed installation
The manufacturer assigns a length of 2020 mm to this article code, rather than exactly 2000 mm. Allow for that difference when laying out a lighting run and comparing it with the dimensions of the planned furniture or lining. The U profile is designed for plasterboard and furniture board measuring 12 mm thick.

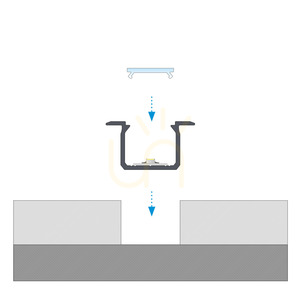

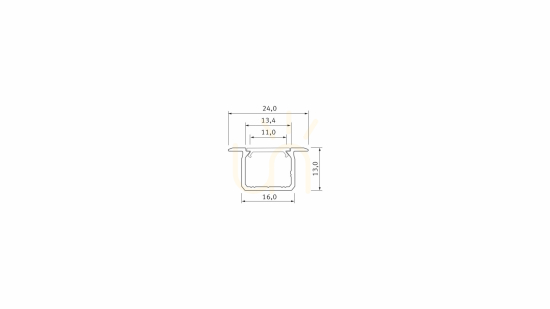

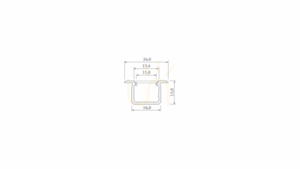

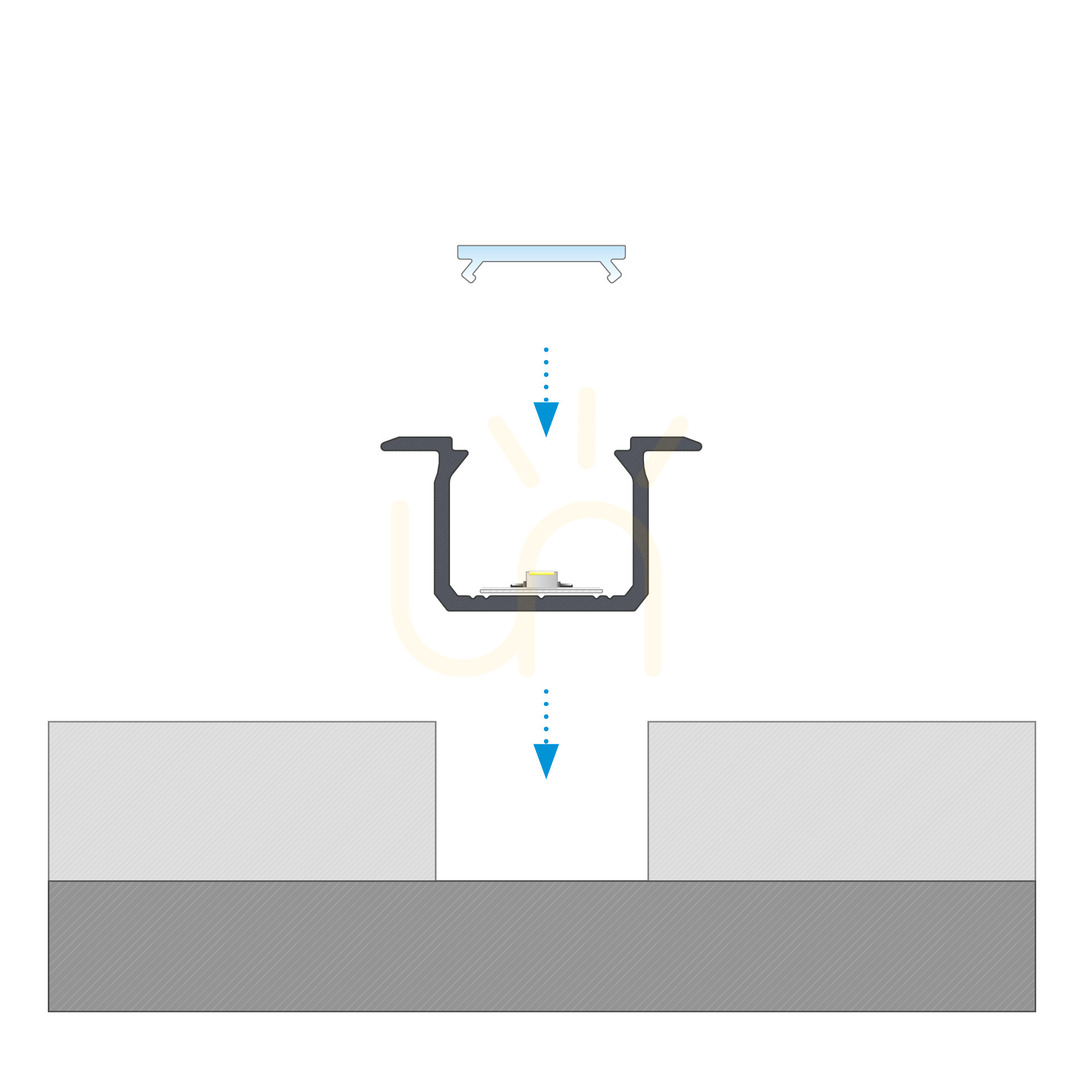

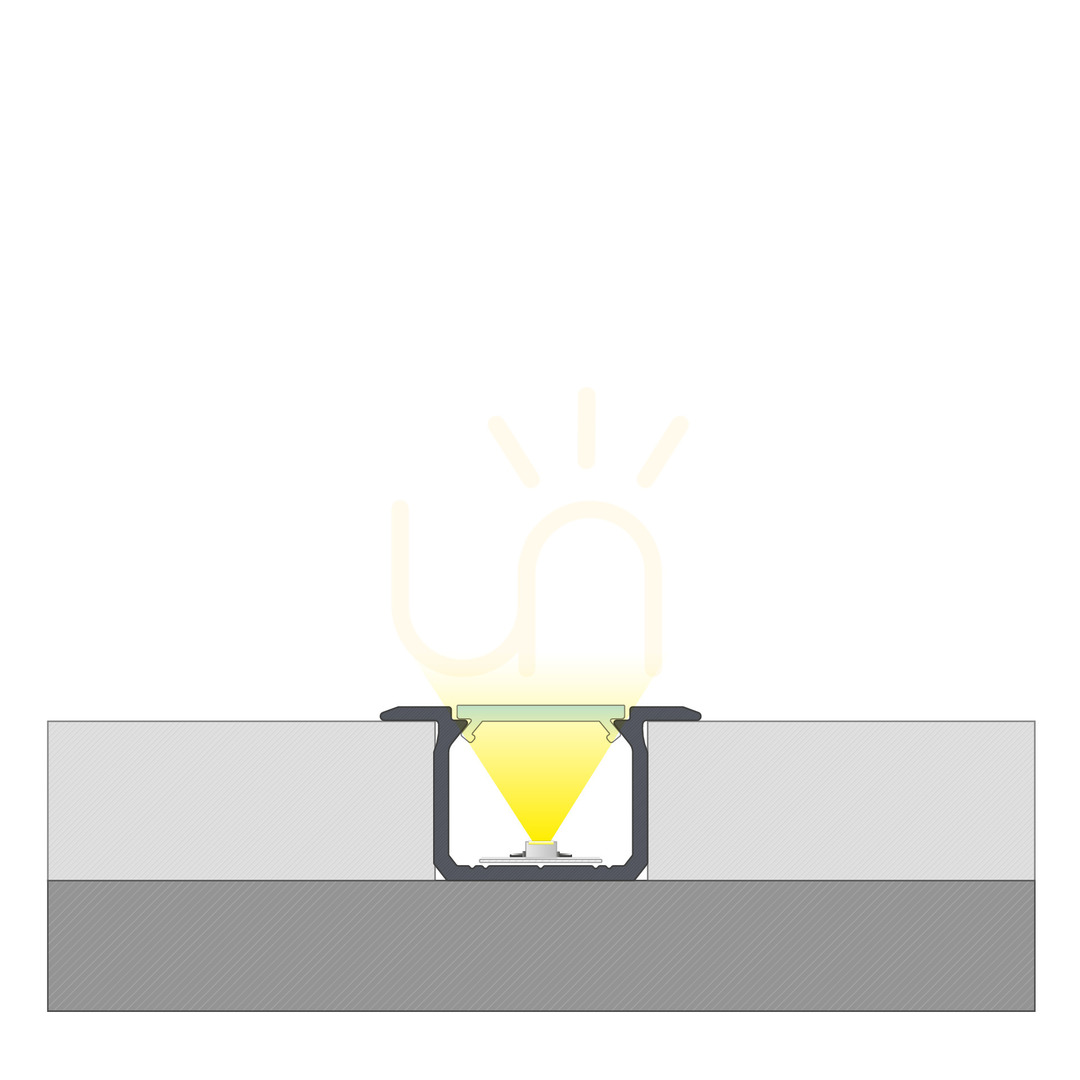

Overall width is 24 mm and the cross-section height is 13 mm; the drawing gives 12 mm for the recessed portion. These dimensions refer to different parts of the section, so overall width should not be treated as the routing dimension. The official installation method includes pressing the profile into a prepared opening. This construction does not require the profile edge to be finished with filler.
Strip width and U-system components

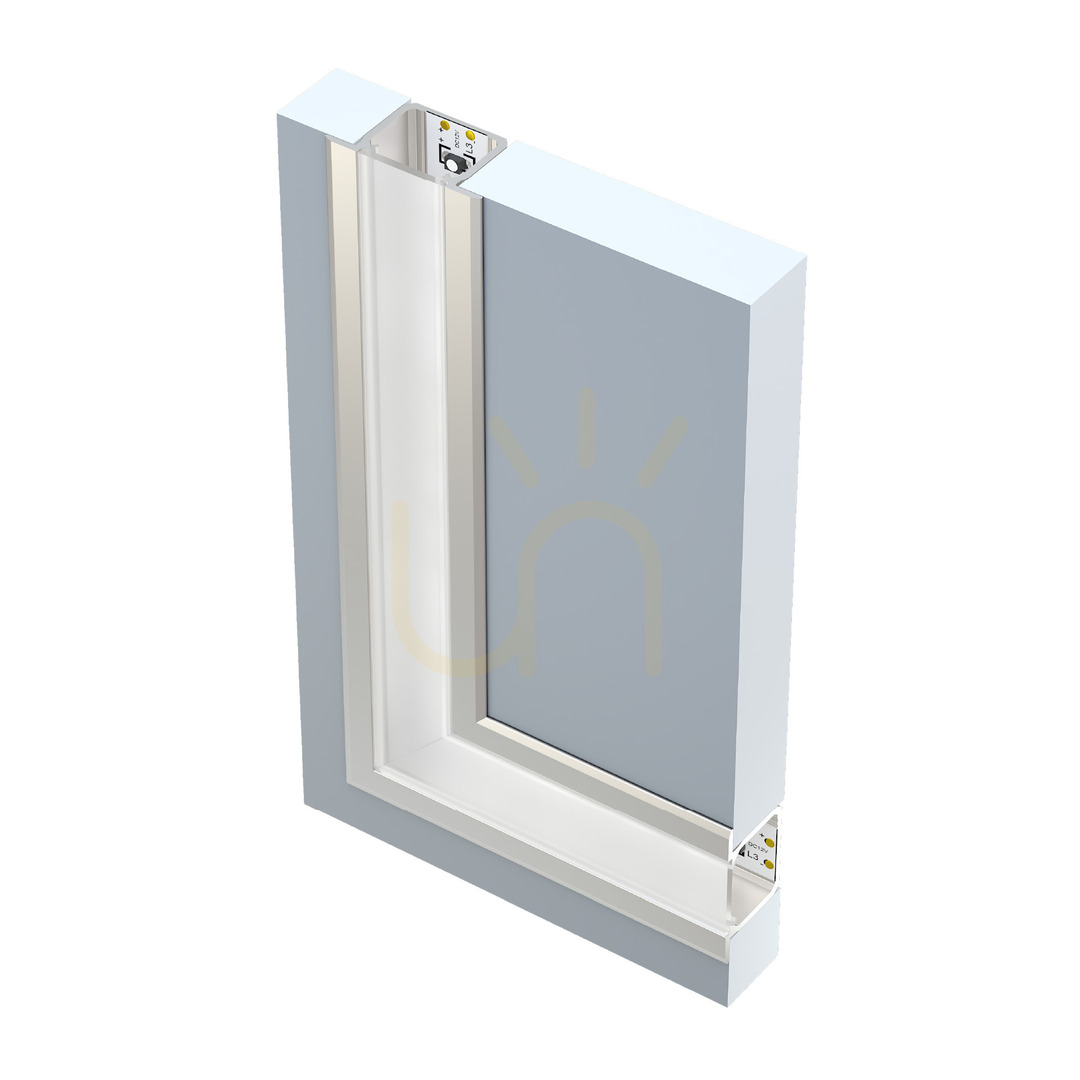

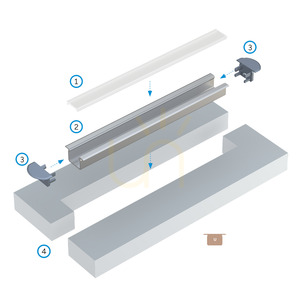

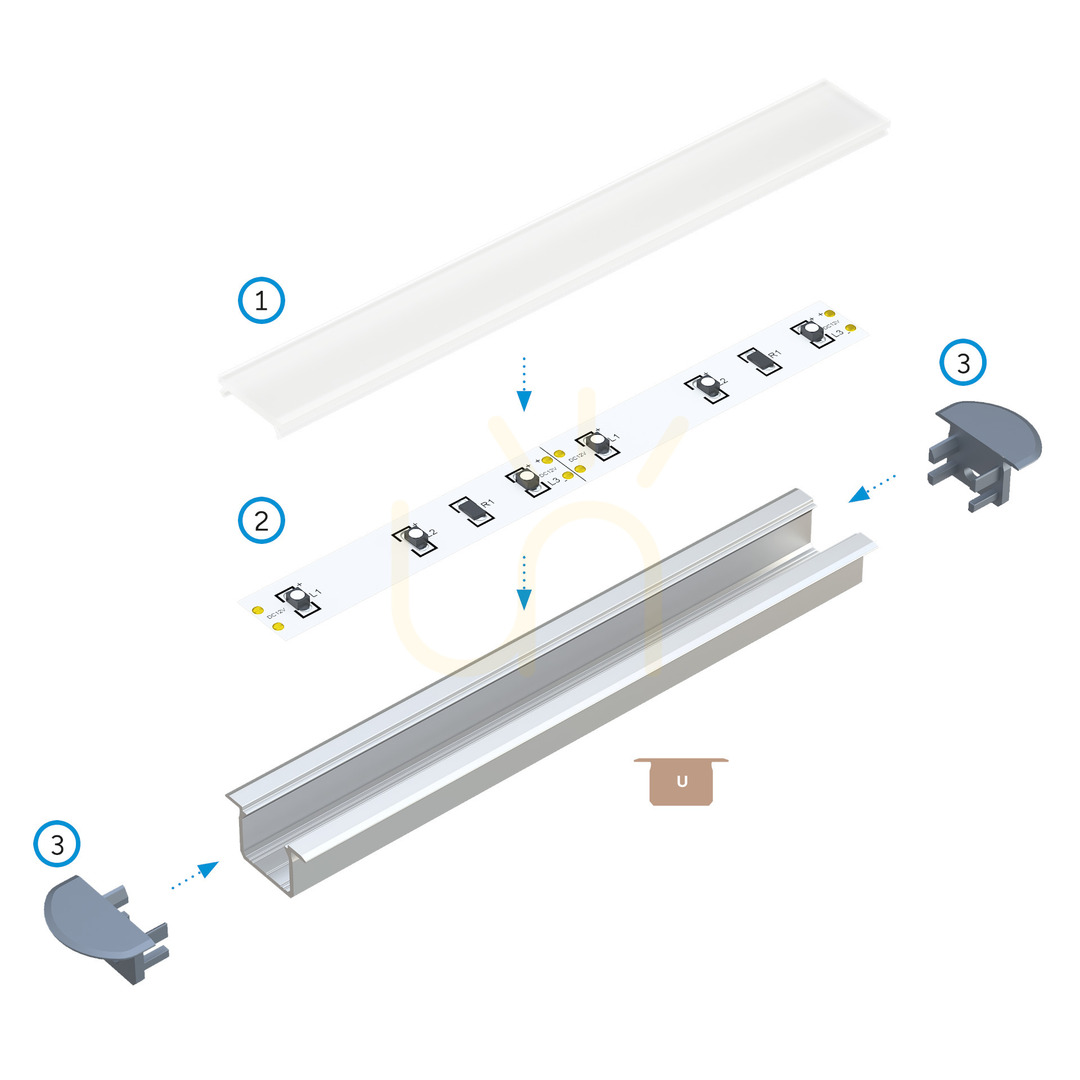

The datasheet specifies LED strips up to 12 mm wide. Compatible components include BASIC covers and U end caps with a hole. Assembly drawings show these parts together with a strip as a constructed system, not as confirmation of this offer's package contents. Choose the cover according to the intended appearance of the light line and the relevant material version.
The power supply is positioned outside the profile. Its location and the cable route therefore need to be allowed for within the installation. Light colour, brightness and control depend on the selected strip and equipment, not on the white profile itself.
A restrained decorative light line

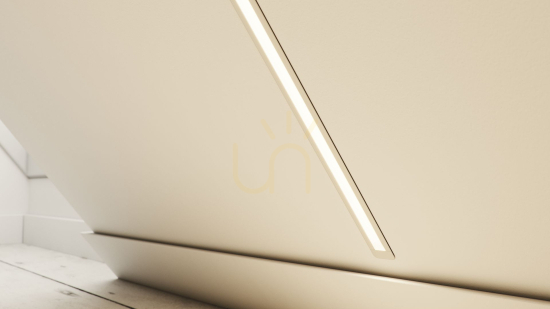

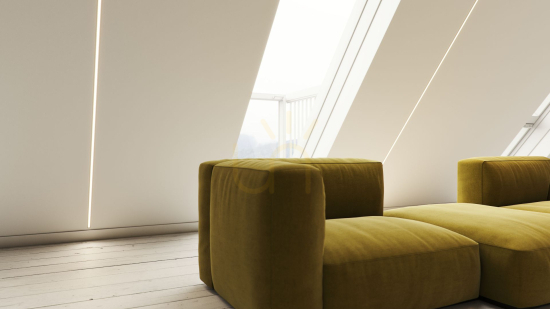

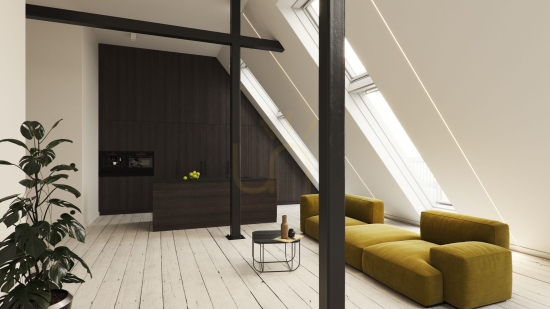

The recessed construction is intended for decorative lighting in boards and furniture, including shelves and cabinets. A straight section, white finish and few visible details suit modern, minimalist compositions. Manufacturer photographs illustrate possible installations; they do not establish the lighting performance of a finished assembly.
