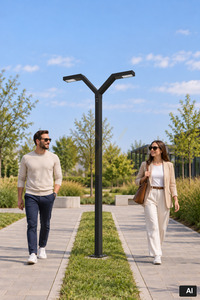

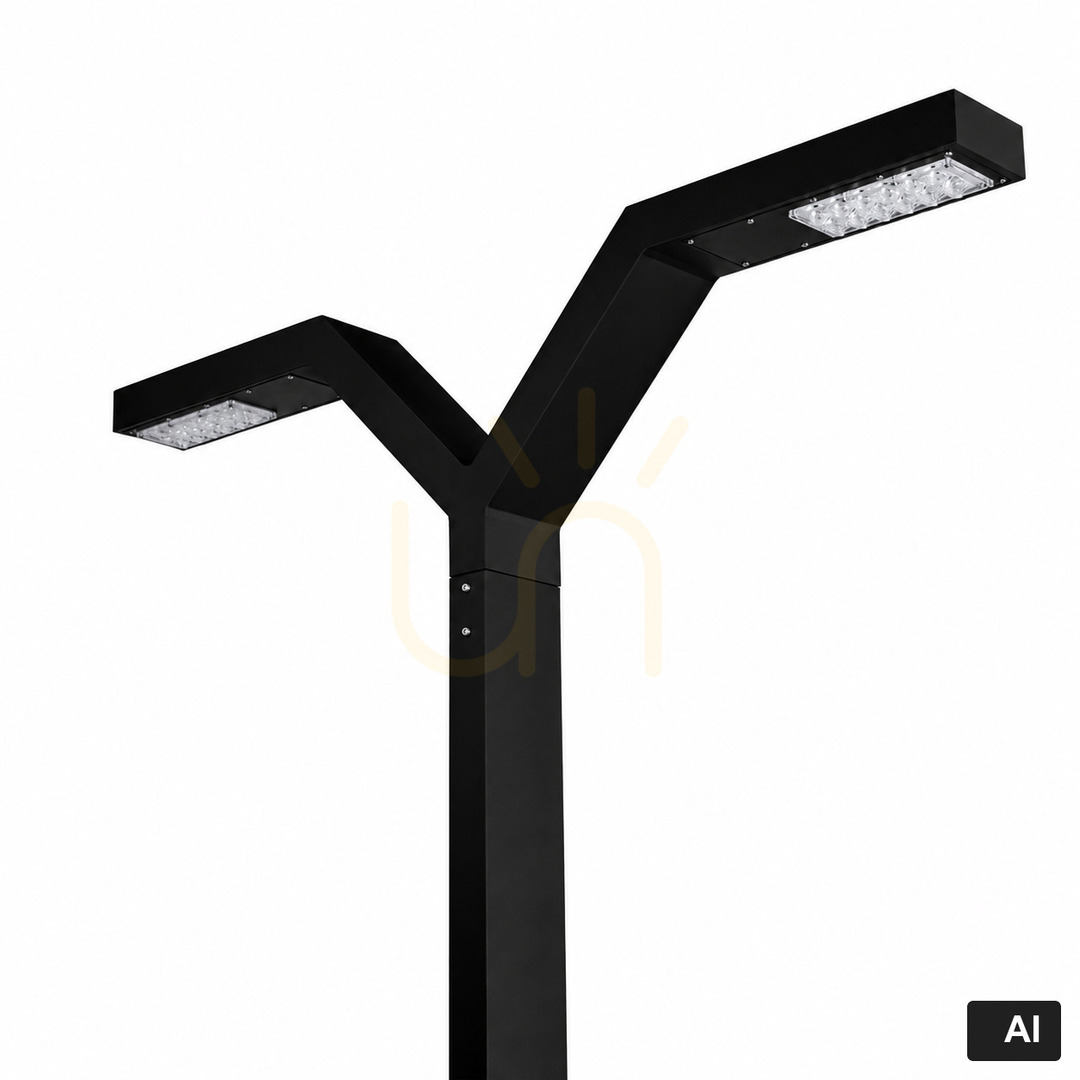

TRYSIL 1011BL is a complete pole luminaire: a 263 cm pole of extruded aluminium ending in a fork carrying two heads 118 cm apart. Finished in black, RAL 9005. It is bought as one item — pole and heads are a single product.
A directional lens, not a plain diffuser
The optic uses a Ledil SCL lens with an IESNA type II/III distribution. That is an asymmetric pattern designed to light along a route — a footpath, a driveway — rather than evenly in every direction. In practice it means poles can be spaced further apart at the same wattage, because the light goes where it is needed.
How much light reaches the sky
Upward light output is ULOR 0.9% and the BUG rating is B1-U2-G1. Where the lit area adjoins housing or protected land, that is a concrete argument.
Flicker — figures worth comparing
The manufacturer declares PstLM ≤ 0.1 and SVM ≤ 0.1. The EU limits are 1.0 and 0.4 respectively, so TRYSIL sits an order of magnitude below the limit rather than just under it. That matters where people spend time and where CCTV operates.
DALI2 and NightDim
The luminaire has a built-in DALI2 driver and the NightDim function (XI FP NLD) — autonomous dimming during night hours with no control system. For smaller installations, where building a DALI bus is not worth it, that is real saving without extra cabling. Inrush current is 21 A / 225 µs, which matters when protecting several poles on one circuit.
Lighting data
The two LED modules draw 13 W, the whole luminaire 16.3 W, and 2293 lm leaves the fitting from 2509 lm of source flux — an efficiency of 140.7 lm/W, a very high figure. Colour is 4000 K. Rendering is CRI 70 and colour consistency SDCM5 — typical for route lighting, but not for places where colour is judged. Lifetime is L90B10 100,000 h per LM-80; the driver is also rated 100,000 h.
Resistance and installation
Sealing IP65, mechanical resistance IK10, lens in clear UV-stabilised polycarbonate. Operating range −20 to +45 °C. Electrical class I — a protective earth conductor is required. Terminals take up to 5 × 4 mm², loop-through to the next pole up to 5 × 2.5 mm². Anchoring parts are bought separately: mounting adapter 1259, ground anchor 180 or concreting anchor 3091. Weight 21.3 kg net / 23.7 kg gross. A service set ZS1011zx0009 is available.
Finishes
The same model comes in three colours: black RAL 9005 (1011BL), aluminium RAL 9006 (1011AL) and graphite RAL 7016 (1011GR). To order, Norlys will supply another RAL colour.
Specifications
- Manufacturer item: 1011BL (black RAL 9005)
- EAN: 7042890101163
- Collection: TRYSIL (NORLYS)
- Type: pole luminaire, twin head
- Dimensions: 118 × 24 × 263 cm; packaging 44 × 38 × 232 cm
- Weight: 21.3 kg net / 23.7 kg gross
- Material: extruded powder-coated aluminium; clear UV-stabilised PC lens
- Optics: Ledil SCL lens, IESNA type II/III distribution
- Light source: 2 LED modules
- Luminaire power: 16.3 W (modules 13 W)
- Luminaire flux: 2293 lm (source 2509 lm)
- Efficiency: 140.7 lm/W
- Colour temperature: 4000 K
- CRI 70; SDCM5; PF 0.92; THD 7%
- ULOR: 0.9%; BUG: B1-U2-G1
- Flicker: PstLM ≤ 0.1; SVM ≤ 0.1
- Lifetime: L90B10 100,000 h; driver 100,000 h
- Control: DALI2 / NightDim (XI FP NLD); inrush 21 A / 225 µs
- Supply: 220–240 V
- Electrical class: I; IP65; IK10
- Ambient temperature: −20…+45 °C
- Warranty: 5 years; anti-corrosion warranty 25 years
- Accessories separately: adapter 1259, ground anchor 180, concreting anchor 3091
