Recessed Panel V-TAC 24W LED SAMSUNG CHIP Square 295x295mm VT-61024SQ-S 4000K 2640lm

VT-61024SQ-S is a square LED panel for recessed installation in a suspended ceiling, 29.5 cm to a side and only 2.86 cm thick. It uses backlit technology — the Samsung diodes are spread across the whole face of the panel rather than sitting along the edges as in cheaper edge-lit designs. The difference is visible: the luminous surface is even, with no brighter bands near the frame and no darker centre.

The light

The panel draws 24 W and delivers 2640 lumens, an efficacy of 110 lm/W — enough for a single panel to replace a sizeable louvred fitting. At 4000 K the light is neutral white: it does not yellow a room the way warm white does, nor chill it the way 6500 K does, which makes it a good fit for shops, offices, receptions, corridors and work areas. Colour rendering is above 80, with an R9 value of 15. Colour consistency falls within a 6-step MacAdam ellipse (SDCM 6), so panels from one batch light with a closely matching tint.

Specification

• Type: recessed LED panel, backlit, square
• Power: 24 W
• Luminous flux: 2640 lm
• Efficacy: 110 lm/W
• Colour temperature: 4000 K (neutral white)
• Colour rendering: CRI > 80 (R9 = 15)
• Colour consistency: SDCM 6
• LED: Samsung
• Supply: AC 220–240 V, 50/60 Hz
• Energy efficiency class: E
• Dimensions: 295 × 295 × 28.6 mm
• Material: plastic, white
• Ingress protection: IP20 (dry rooms)
• Dimmable: no
• Switching cycles: over 15,000
• Rated life: approx. 18 years at 3 hours a day
• Net weight: 0.49 kg
• Warranty: 5 years
• Certification: CE, EMC, RoHS
• EPREL registration number: 1994809

Installation

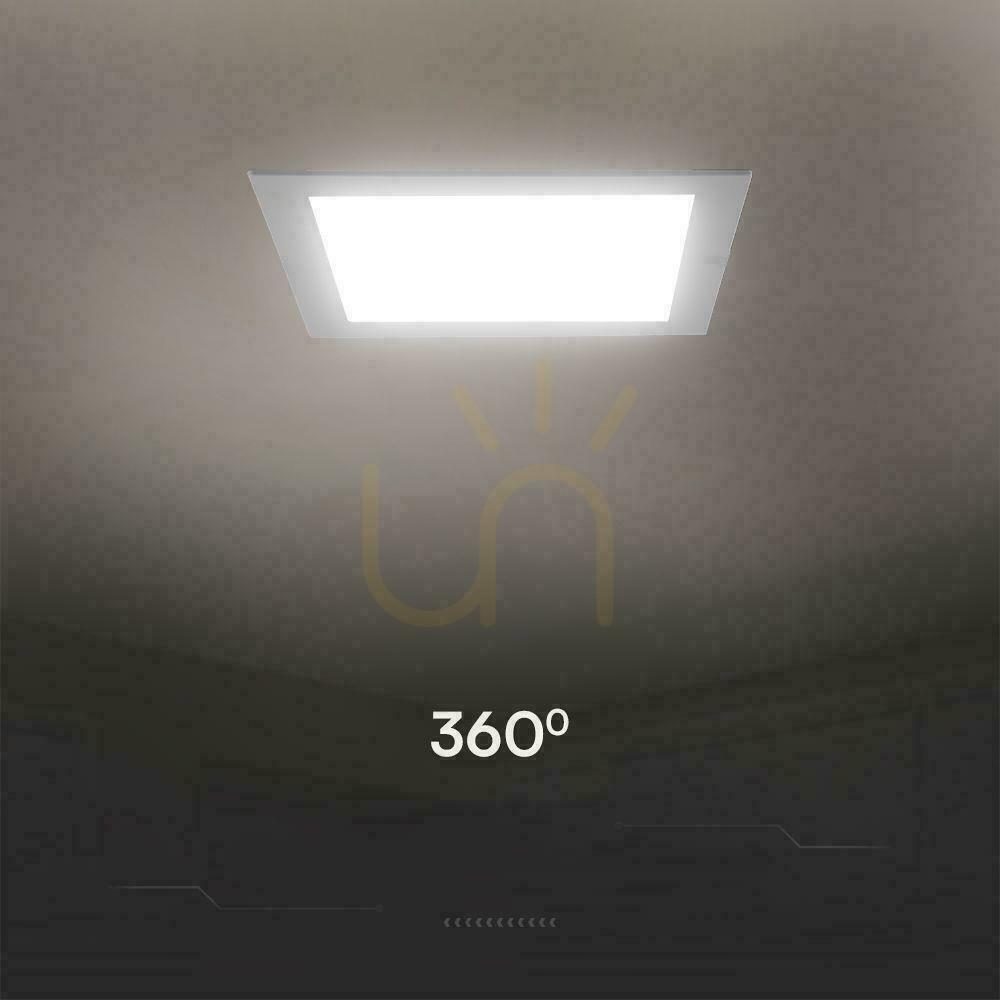

The panel is designed for suspended and plasterboard ceilings — it slides into a prepared aperture and sprung clips pull the frame tight against the board. The driver is supplied with the fitting and connects to the 230 V feed; there is nothing to specify separately. The IP20 rating limits it to dry rooms — the panel is not suitable for bathroom zones exposed to direct water contact, nor for outdoor use.

Where it works

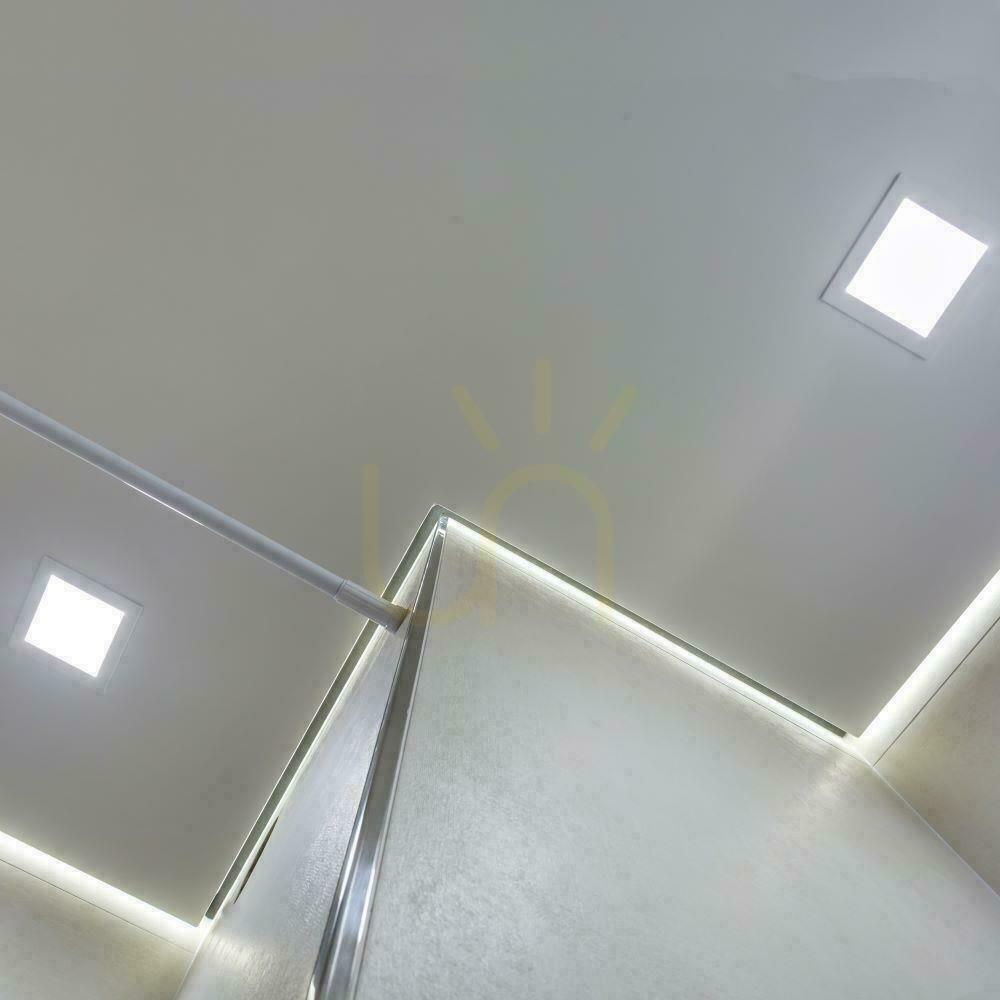

A 30 × 30 cm square is an intermediate format: smaller than the classic 60 × 60 cm panel, yet bright enough to light a till point, a display case, a stretch of corridor, a kitchen or a small office. Several panels laid out on a grid build even general lighting without any conspicuous fittings. The panel is not dimmable, so the light level is set by how many you install and where, rather than by a control.

About the manufacturer

V-TAC is a European LED lighting manufacturer based in Bulgaria, specialising in technical luminaires with a strong specification-to-price ratio. This model belongs to the range built around Samsung diodes and carries a 5-year manufacturer warranty. Its technical data was declared by the manufacturer in the EU energy-label registry EPREL under number 1994809.
