SpectrumLED G4 LED light source WOJ+13785_CW 1.2 W 12 V 6000 K

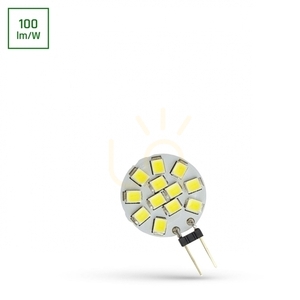

SpectrumLED WOJ+13785_CW is a compact G4 LED light source with a flat, circular board carrying twelve visible LEDs. This version consumes 1.2 W and produces cool white light at 6000 K. It is specified for indoor use.

Check the G4 fitting and the 12 V supply

When choosing a replacement, check both the socket and the electrical supply. A matching G4 base alone does not establish compatibility. The manufacturer permits 12 V AC at 50 Hz or a constant-voltage 12 V DC supply. This light source is not for direct connection to a 230 V mains supply.

Its dimensions are 20 × 30 × 8 mm. Compare these with the space inside your fitting before purchase, taking account of the flat shape and the position of the contacts. This version is not dimmable, so it should not be chosen for an installation that requires brightness adjustment.

Cool white light from a small source

The specified luminous flux is 120 lm, with a beam angle of 120°. A colour temperature of 6000 K gives cool rather than warm white light; when replacing just one source, compare its colour temperature with the others. These figures describe the source itself, while the shade and construction of the fitting also affect the resulting light. The manufacturer states a lifespan of 17,000 hours and a two-year warranty. These are separate measures, not a promise of seventeen years of use.
