DUAL HF DALI DE presence and dusk sensor

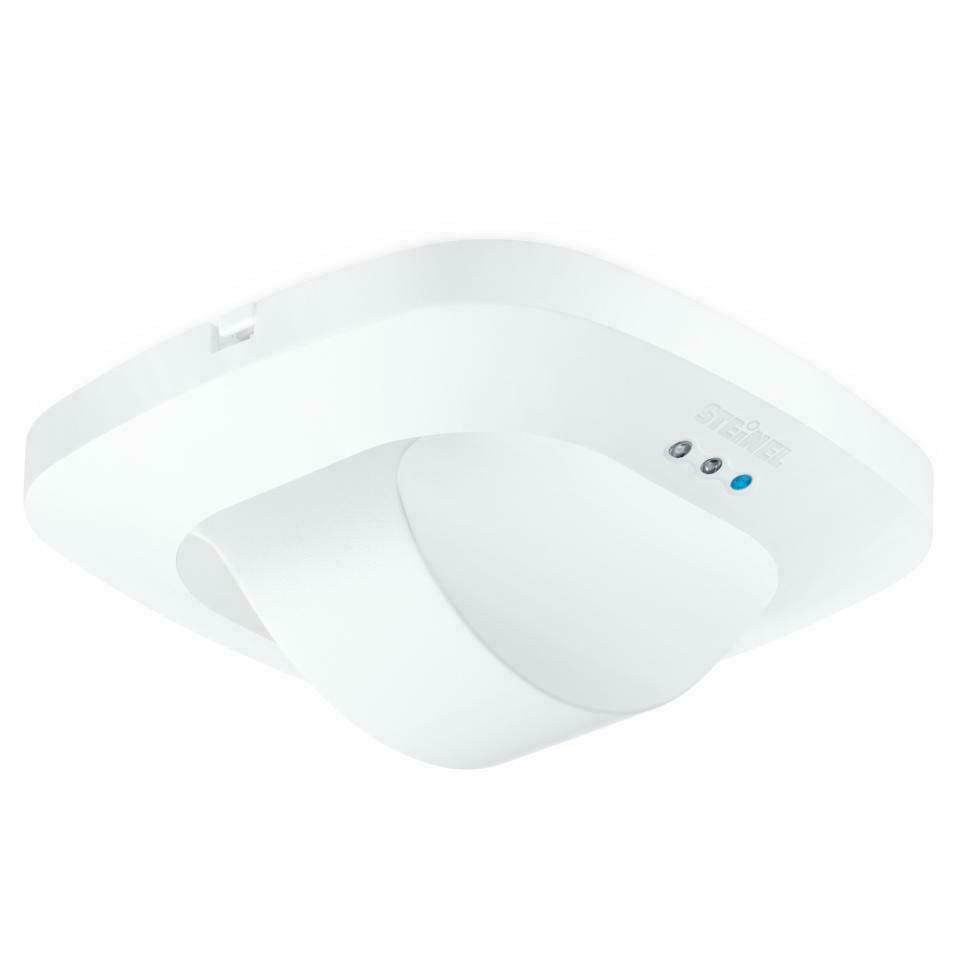

Steinel Dual HF DALI-2 APC flush-mounted presence detector 360° 20 × 3 m IP20 Code: 079499

Intelligent HF sensor with DALI-2 digital control - ideal for corridors and passageways

Steinel Dual HF DALI-2 APC is a professional presence sensor from the Presence Control PRO series, designed for ceiling flush mounting. With DUAL HF (5.8 GHz) technology, it detects movement radially in two directions - even through glass, wood and thin walls. It works as a DALI-2 Application Controller, supporting two lighting channels. It is ideal for long corridors, transition and communication zones inside buildings.

Key features of the Steinel Dual HF DALI-2 APC sensor.

• Detection range: 20 × 3 m (radial and tangential, 60 m2) - ideal for linear spaces.
• DALI-2 APC (Application Controller) digital interface - controls 2 broadcast channels (2x12 EVG).
• Detects motion through obstacles - wood, glass, partitions (HF 5.8 GHz).
• 360° detection and 140° opening angle - full detection coverage in corridors.

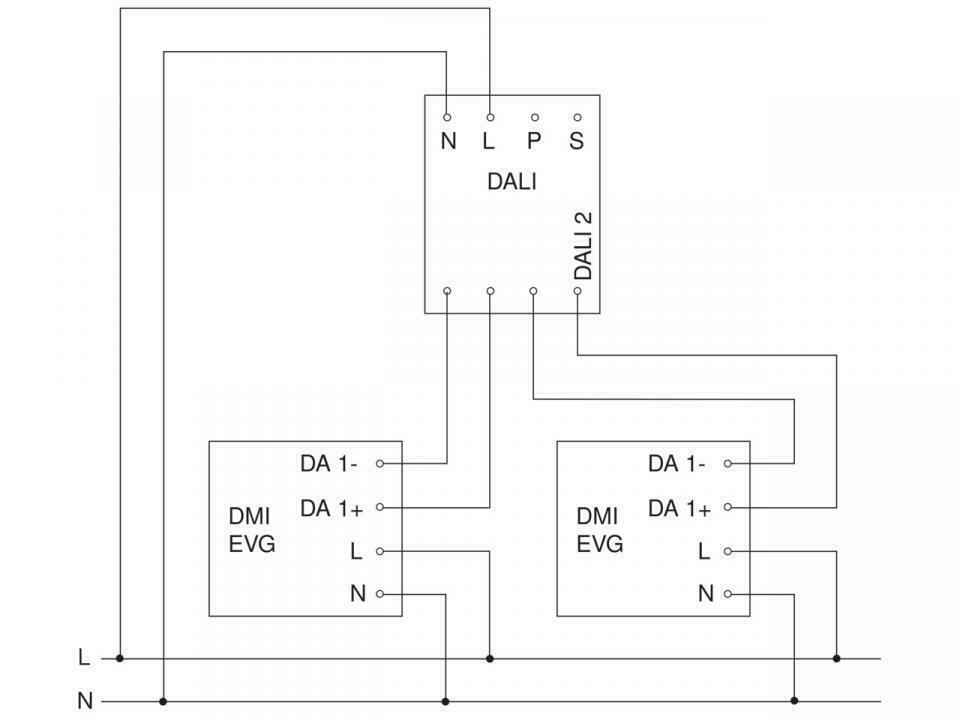

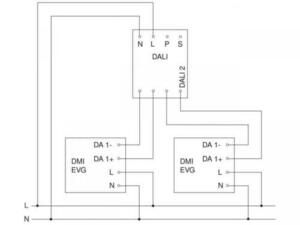

• Power supply 230 V AC, communication via DALI-bus - direct integration with DALI infrastructure.
• TEACH and IQ-mode function - intelligent learning of twilight threshold and adaptation to the environment.
• Ability to operate in automatic, semi-automatic, test and manual modes.

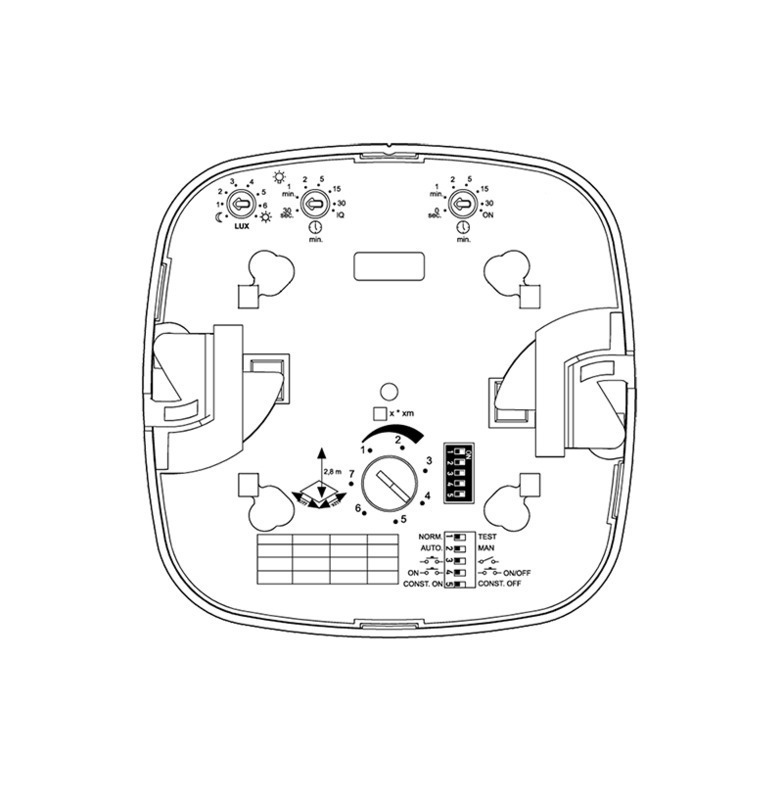

• Settings via Smart Remote, RC5, RC8 or DIP switches/potentiometers.
• Basic lighting level function support - adjustable from 1 to 60 min, night mode, 50-100% dimming.

Application of Steinel Dual HF DALI-2 APC sensor.

• Precise detection of presence in corridors, passageways, galleries, passageways
• Integration with DALI and LiveLink lighting systems
• Use in office buildings, school buildings, hotels, public institutions
• Ideal where motion should be detected even behind obstacles and without delay

Technical specifications of Steinel Dual HF DALI-2 APC sensor

Device type:HF presence sensor Technology:DUAL HF (5.8 GHz) + light sensor Detection angle:360°, aperture angle 140° Detection range:20 × 3 m, 60 m2 (radial and tangential) Mounting height:2.5 - 3.5 m (optimal: 2.8 m) Power supply:230 V / 50-60 Hz DALI output:2 broadcast channels, 2x12 EVG Power consumption:< 1 mW Twilight threshold:10 - 1000 Lux (TEACH) Operation time:30 s - 30 min Functions:IQ-mode, test, semi-automatic, manual, ON/OFF Basic light function:Yes (1-60 min, all night, 50-100%) Degree of protection:IP20 Housing material:Plastic Color:White (RAL 9010) Dimensions:112 × 120 × 120 mm Operating temperature:-25°C to +55°C Interface:Smart Remote, RC5, RC8, DIP/potentiometer Connection type:Master/Slave, via DALI Product code:079499 EAN:4007841079499 Warranty:5 years
