IR presence and dusk sensor Q HD-2 KNX V3.5 DE

Steinel IR Quattro HD-2 KNX V3.5 Ceiling Presence Sensor IP20 White Product Code 079413

Benefits of the Quattro HD-2 KNX V3.5 IR sensor in building automation

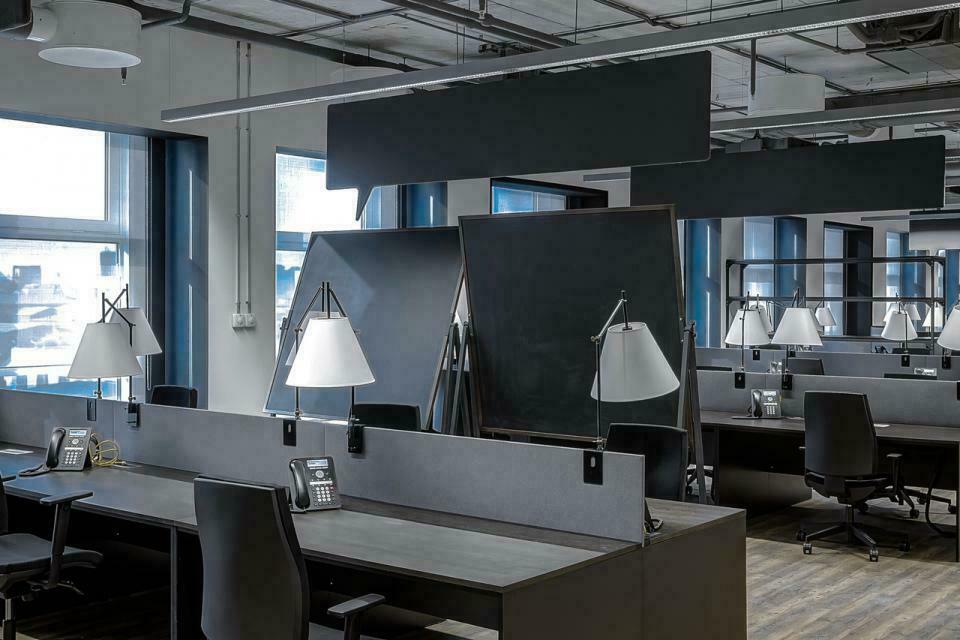

• Largest detection area in its class - Detection range of up to 576 m2 in tangential range and 81 m2 in radial range makes it ideal for open offices, lecture halls and large-area spaces.

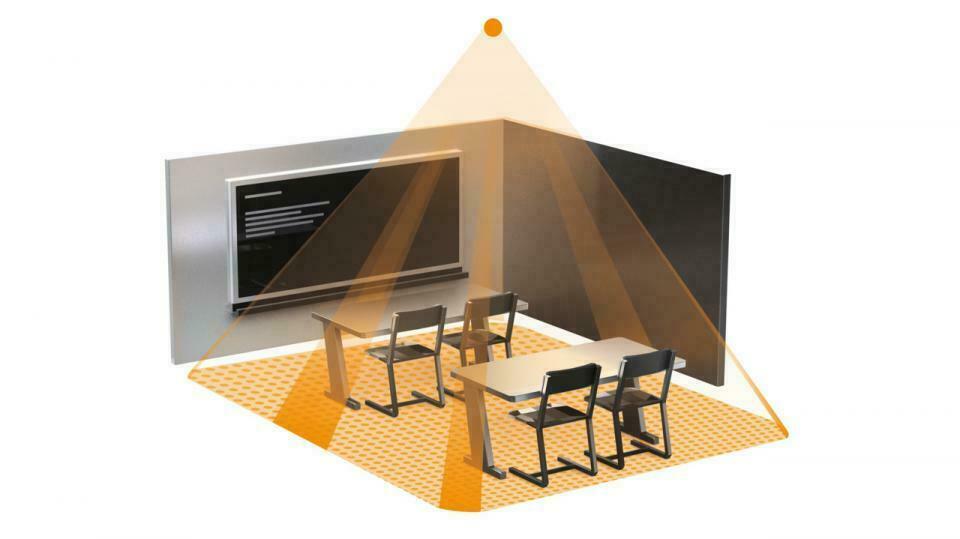

• Precise 360° detection with 5200 switching zones - Ensures maximum accuracy in monitoring presence and light levels in every part of the room.
• Advanced integration with building systems - Works with KNX, COM1, COM2, DALI-2 IPD bus and Bluetooth IPD for comprehensive control of lighting and HVAC systems.
• Individually controllable pyrometric sensor - Enables additional temperature and humidity measurement for even greater precision in automating environmental conditions.
• Easy installation and configuration via Bluetooth - Intuitive settings through a mobile app ensure quick startup and convenient operation of the device.

Features and applications of the Quattro HD-2 KNX V3.5 IR sensor

• Wide ceiling mounting range from 2.5 to 10 m high - Enables effective detection in large spaces with varying heights.
• Programmable operating time from 5 seconds to 60 minutes - Flexible settings allow you to precisely adjust the operation of the device to the specifics of the room.
• Adjustable light level from 2 to 2,000 Lux - The sensor automatically adjusts operation according to natural light levels.
• Full control of environmental parameters - Monitoring of temperature and humidity affects the comfort of users and energy efficiency of the building.
• Robust and modern designof the Professional Line series - High quality workmanship and aesthetic design ensure durability and perfect integration into interior architecture.

Technical and logistical data of the product

• Device type: infrared presence detector (PIR)
• Detection technology: 360°, 5200 switching zones, pyrometric sensor
• Detection angle: 360°
• Detection range: tangential 576 m2, radial 81 m2
• Mounting height: 2,5 - 10 m
• Ambient brightness range: 2 - 2000 Lux
• Operation time settings: 5 seconds - 60 minutes
• Power supply: KNX bus
• Power consumption: not specified in the document (low power consumption)
• Operating mode: Bluetooth IPD, IQ-mode
• Programmable outputs: light control, HVAC, presence output, day/night functions, logic gate
• Communication interfaces: KNX, COM1, COM2, DALI-2 APC, DALI-2 IPD, Bluetooth IPD
• Color: white
• Housing material: plastic
• Product code: 079413
• EAN: 4007841079413
• Warranty: 5 years
