Lillehammer 2275CS LED Outdoor Wall Light in Corten Steel Colour, Narrow Upward Beam, DALI2 NORLYS

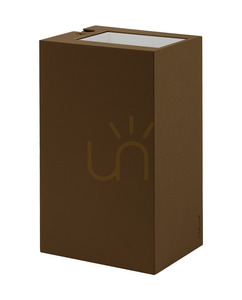

Lillehammer 2275CS is an outdoor LED wall light shaped as a plain rectangular box that shines upwards only, in a narrow 4° beam. The body is cast aluminium, powder-coated in the colour of corten steel – the finish is a colour, not the material. Clear safety glass in the top face covers the light source.

What light it gives and where you see it

All of the light goes up (ULOR 100%), and the 4° beam draws a narrow vertical line on the wall above the fitting. The manufacturer intends it for lighting wall surfaces, façades and other architectural schemes. No light falls below the fitting, so it will not light a path, steps or a door lock – it is an accent light, not entrance lighting.

The manufacturer gives 504 lm for the LED module and 15 lm for the whole luminaire. The second figure is the light that leaves through the narrow optic, and it tells you what to expect: a crisp line on the wall, not a lit surrounding. At 3000 K the light is warm white.

Look, size and mounting

The unadorned box with a single glass window suits façades in a Scandinavian, modern or minimalist style, and the dark, brownish-rust corten colour stays visible on the wall by day as well. The fitting is 18.5 cm tall and 8 cm wide and projects 11 cm from the wall – compare these with the width of the pilaster or façade strip that is to carry the line of light. It is fixed through two ø5 mm holes spaced 45 × 130 mm apart and weighs 1.6 kg.

IP65 allows mounting outdoors without a canopy. As a class I luminaire it needs a protective earth conductor. The terminals take up to 5 × 1.5 mm² and allow looping on to the next fitting; an EPDM gland seals a round cable of 7–10.5 mm. On a single B16 circuit breaker the manufacturer allows up to 74 of these fittings, which matters for a longer façade run.

Power, DALI2 control and servicing

The wall light draws 4.5 W and has a built-in electronic driver with DALI2 control, so dimming and lighting scenes require a DALI installation with a controller. The LED module is included.

The LED module and driver are not user-replaceable, but a professional service can swap them using the manufacturer's service kit ZS2275zx0009, so a failed module does not mean replacing the whole fitting.
