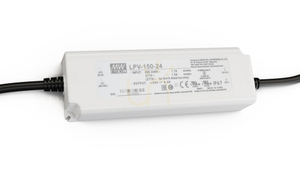

MEAN WELL LPV-150-24 LED power supply 24 V 150 W IP67

MEAN WELL LPV-150-24 LED power supply

The MEAN WELL LPV-150-24 is a switched-mode, constant-voltage power supply with a 24 V DC output for LED installations. It belongs to the LPV-150 family and has a 150 W nominal rating. The manufacturer’s data sheet specifies 6.3 A output current and 151.2 W maximum output power for the 24 V version. This is specifically the 24-volt model, so the voltage and total load of connected equipment should be checked before connection.

Key specifications

• LPV-150 input: 180–305 V AC, 47–63 Hz;
• output: 24 V DC, 0–6.3 A;
• housing dimensions: 191 × 63 × 37.5 mm;
• IP67 enclosure rating;
• operating temperature from −25 to +65°C, subject to the manufacturer’s derating curve.

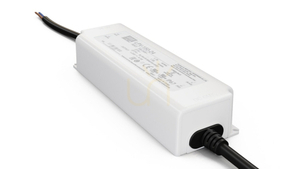

The plastic enclosure is designed by the manufacturer for LED-related equipment, with input and output leads emerging from the body. IP67 describes the enclosure rating of the supply itself; it does not replace correct selection of the rest of the installation or correct electrical connections.

Choosing it for an LED system

The unit can be used with 24 V DC LED strips and other loads when their combined demand remains within this model’s parameters. The data sheet identifies constant-voltage operation and hiccup-mode overload protection, which recovers automatically after the fault condition is removed. Installation and wiring should follow the manufacturer documentation and the requirements applicable to the electrical installation.
