NORLYS Trelleborg 2621GR LED pole-light head, graphite grey

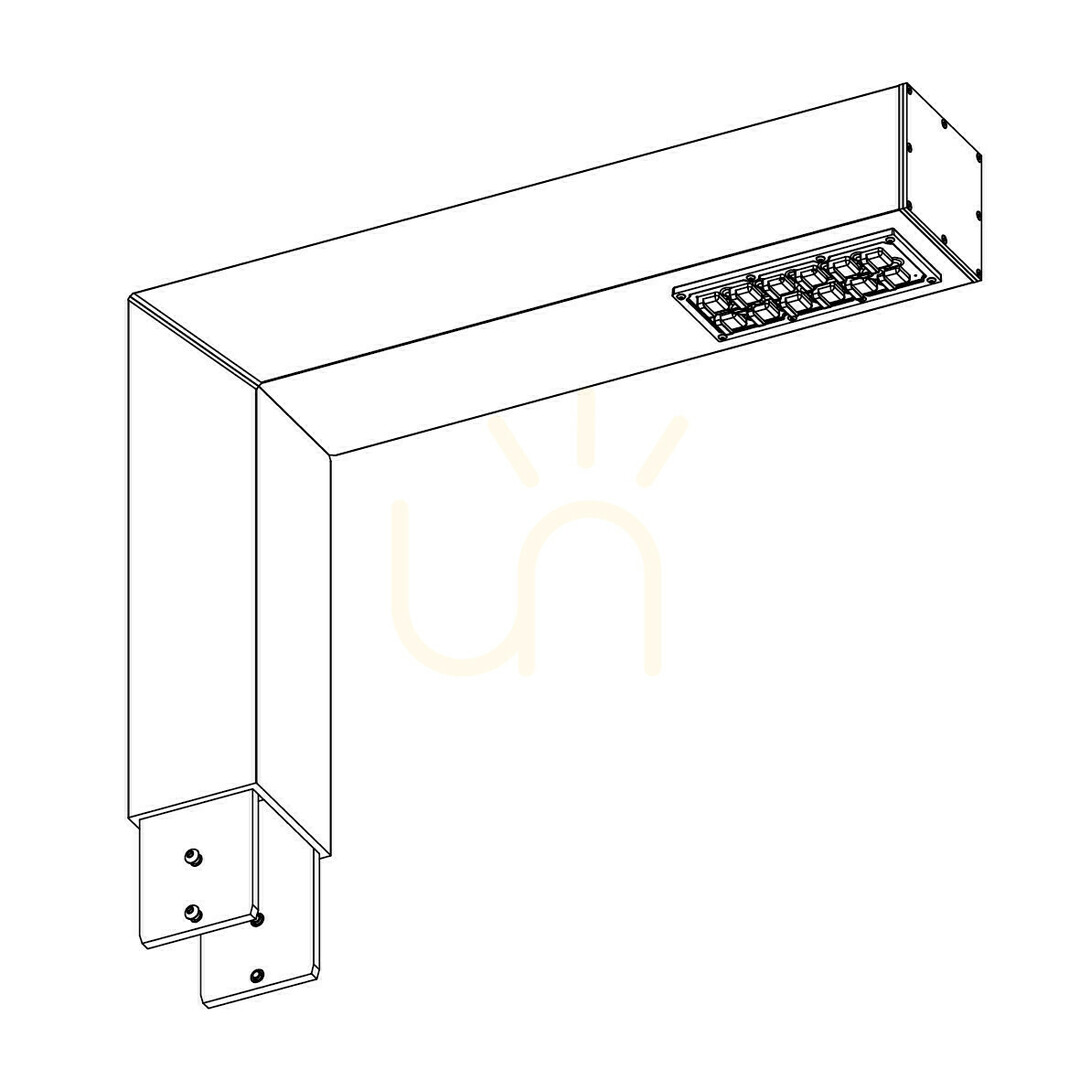

NORLYS Trelleborg 2621GR is a single LED luminaire head for pole mounting, not a complete garden light supplied with a pole. Its rectangular profile turns through a right angle, with a graphite-grey RAL 7016 finish. The body is made from powder-coated extruded aluminium, while the clear optical lens is polycarbonate.

Allow for a separate supporting pole

The head itself measures 60.5 cm long, 11 cm wide and 49 cm high. That height is not the overall height of an installed light. Its mounting interface is intended for a 100 × 110 mm pole profile. Check the support and connection against the Trelleborg installation documents rather than choosing a pole solely by its height.

Norlys lists poles from the 2650–2653 and 2655–2658 families as separately ordered accessories, with heights from 4 to 7 m. Neither the pole nor other accessories form part of this product position. The head's straight lines and absence of an ornamental lantern enclosure suit modern, minimalist exterior schemes. Its restrained profile also supports a Scandinavian-style classification without adding decorative details.

Plan around the luminaire's light output

The integrated LED module produces warm-white light at 2700 K. The complete luminaire delivers 2801 lm and consumes 20.9 W. Its LED source has a separate output figure of 2894 lm, which should not be substituted for the light leaving the fitting. A Ledil SCL lens provides IESNA Type II/III distribution. For a driveway, park path or private outdoor area, use the photometric files for model 2621 together with the chosen pole height when planning spacing and coverage.

The head is rated IP65 and IK10. These ratings describe its enclosure protection and impact resistance; they do not remove the need for the specified mounting arrangement.

Controls and professional servicing

The fitting operates on 220–240 V with DALI2 / NightDim control equipment. Norlys supplies the driver programmed for maximum current; other settings require agreement with the manufacturer. Installation and replacement of the LED module or control gear should be carried out by appropriately qualified professionals. This is not a fitting with a standard bulb intended for routine replacement by the user.
