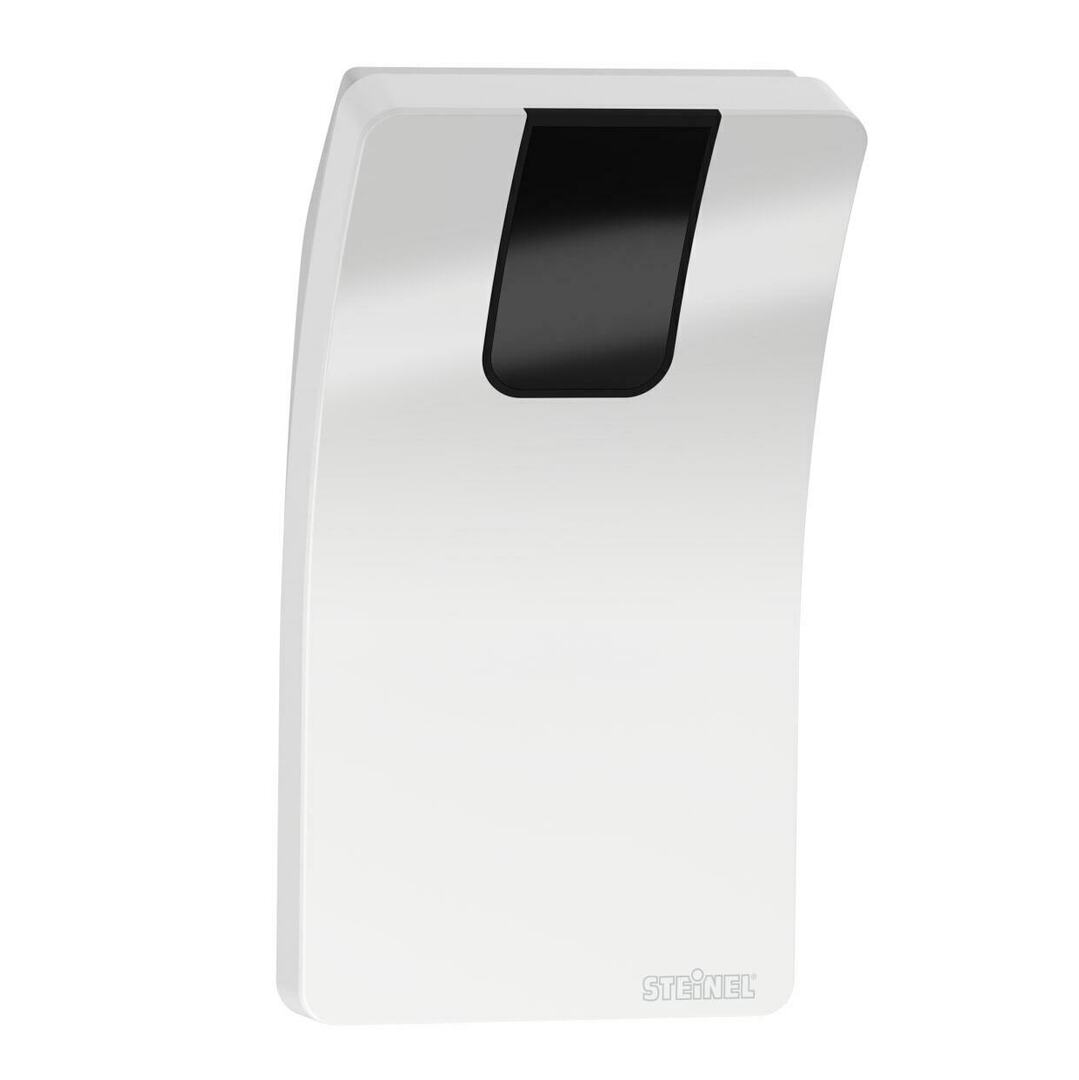

Steinel HPD2 KNX human presence camera

Human presence camera HPD2 KNX IP20 OPTICAL SENSOR 110° 10m PRODUCT CODE 033200

Benefits of using HPD2 camera in building automation:

• Precise real-time detection and counting of people - The HPD2 camera analyzes as many as 150,000 positive and 7 million negative images, providing exceptional indoor detection accuracy.
• Customizable detection zones - The ability to configure up to 5 precise zones allows for intelligent space management, ideal for offices and conference rooms.
• Advanced presence analysis - The device detects not only motion, but also the presence of people sitting and standing, allowing real monitoring of space usage.
• Supports optimal management of the work environment - Ideal for detecting unused workstations and planning flexible use of desks in open spaces.
• Seamless integration with KNX - The HPD2 camera offers bus communication and additional power voltage for easy integration into existing building automation systems.
• Significant building energy savings - Automatic control of lighting and air conditioning reduces facility operating costs.
• High reliability of real-time operation - The device does not require calibration during operation, which increases its efficiency and minimizes maintenance time.
• Support for modern Smart Office concepts - Enables the creation of smart workspaces based on the actual use of desks and meeting rooms.

Features and applications of the HPD2 camera

• Detection angle of 110° and range of up to 10 meters - Effective control of the space, even with a mounting height of up to 6 meters.
• Multi-zone motion and presence detection - Up to five detection zones can be independently defined.
• Real-time environmental measurement - Built-in temperature and humidity sensor for optimal comfort.
• Customizable time settings - Configurable response time from 10 seconds to 1092 minutes.
• Advanced real-time image analysis - Compare large visual data sets for maximum accuracy.
• Interaction with intelligent building management systems - Integration with BMS for full process automation.
• Wall corner bracket included - Facilitates installation in the most optimal location.
• Dedicated to public and commercial spaces - Offices, open space, conference rooms, coworking and more.

Technical and logistical data of the device

• Detection technology: real-time optical image analysis
• Detection angle: 110°
• Detection range: up to 10 meters
• Maximum mounting height: 6 meters
• Number of detection zones: 5 individually adjustable
• Power supply: KNX bus, additional voltage 18-57 V DC, bus current 130 mA
• Light intensity measurement: 2 - 2000 Lux
• Time setting range: from 10 seconds to 1092 minutes
• Additional functions: temperature and humidity measurement
• Degree of protection: IP20, for indoor applications
• Included: camera HPD2, wall corner bracket
• Manufacturer: Steinel
• Product code: 033200
• EAN: 4007841033200
• Warranty: 5 years

Steinel - expert in intelligent automation

German precision and innovation

Steinel is a brand appreciated worldwide for the highest quality solutions in the field of building automation. The HPD2 camera is an excellent example of the combination of precise detection, advanced image analysis and proven reliability that installation professionals and end users expect.

Thanks to years of experience and German manufacturing precision, the device is ideal for modern commercial buildings, offices and public spaces, providing comfort, energy savings and full control over the working environment.
