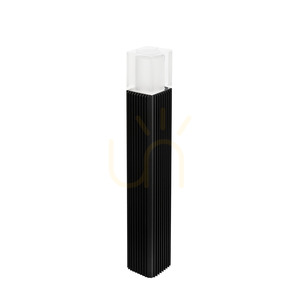

The Frigga 2147BL is an 85 cm Norlys bollard light with a square 14 × 14 cm cross-section. Its body is an extruded aluminium profile with vertical grooves, powder-coated black (RAL 9005), topped with a cube of crystal glass that is satin-finished on the inside.
Light source
The bollard has an E27 socket and takes an LED bulb in an A55–A60 shape of up to 9 W. No bulb is supplied, so you choose the colour temperature and brightness yourself, and the user can replace it. For reference, an LED bulb of about 800 lm gives as much light as an old 60 W incandescent. The satin glass diffuses the bulb, so the cube glows evenly and light leaves in every direction.
Norlys notes that the crystal shade may take on an amber tint over time. The shade has its own service kit (0921530010), so it can be replaced without changing the whole bollard.
Installation and wiring
The base has three ø9 mm holes set 120° apart on a ø65 mm circle. No ground fixing is included – Norlys offers concrete anchor 205, ground anchor 206, concrete foundation adapter 206S and mounting adapter 3080GA separately. The bollard weighs 8.1 kg.
The terminals accept conductors up to 2 × 2.5 mm² and let the supply loop through to the next fitting, and the gland takes round cable up to 12.5 mm in diameter, so several bollards along a path can run from one line. Protection class II means double insulation with no earth conductor.
Where it fits
IP65 means dust-tight and protected against water jets, so the bollard can stand outdoors without cover; impact resistance is IK06. The 85 cm height suits a path, driveway, terrace or pavement by the street. The plain rectangular body with its crystal cube is a modern design with a Scandinavian character.
