Garden Lantern Trysil 1002 Graphite 7016 Norlys

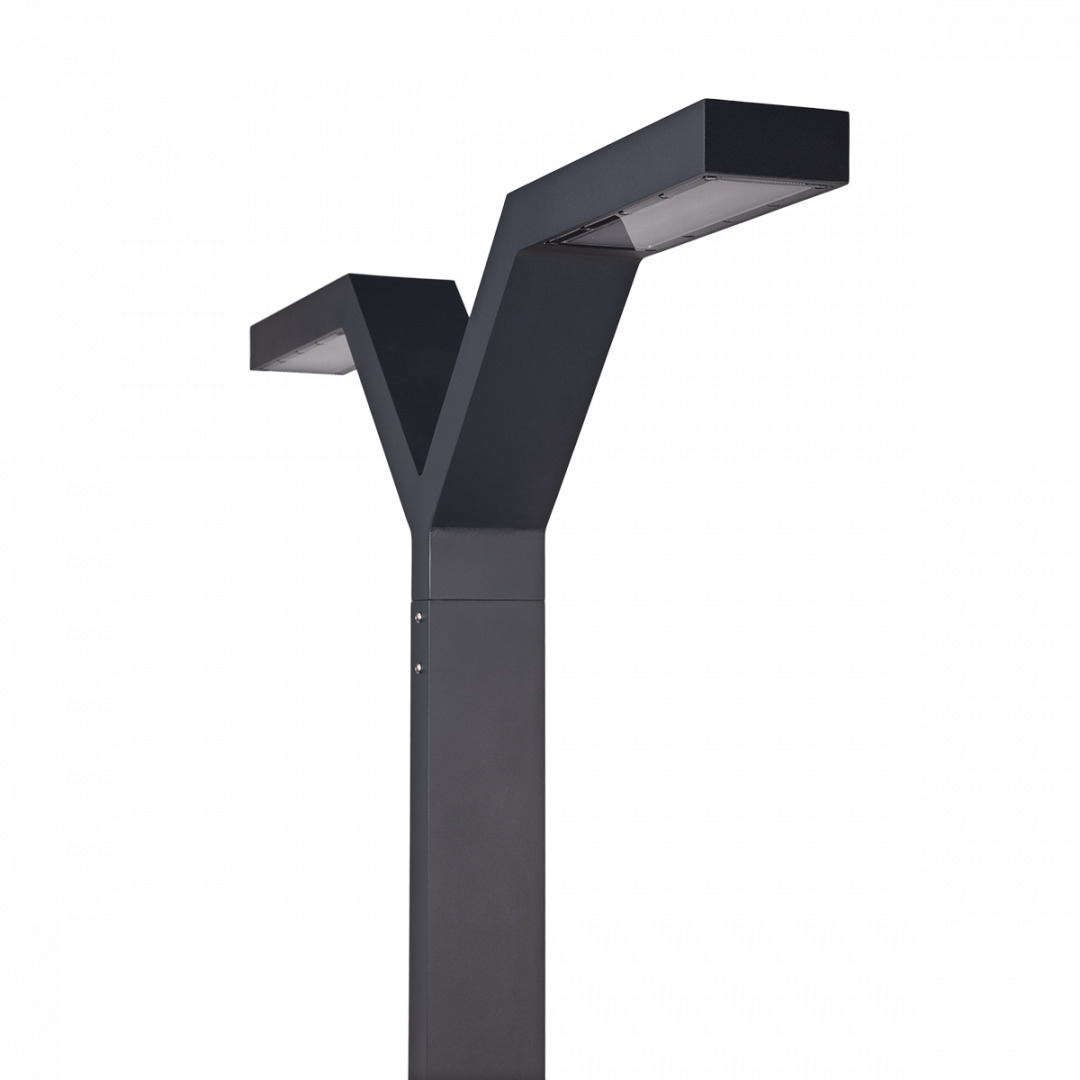

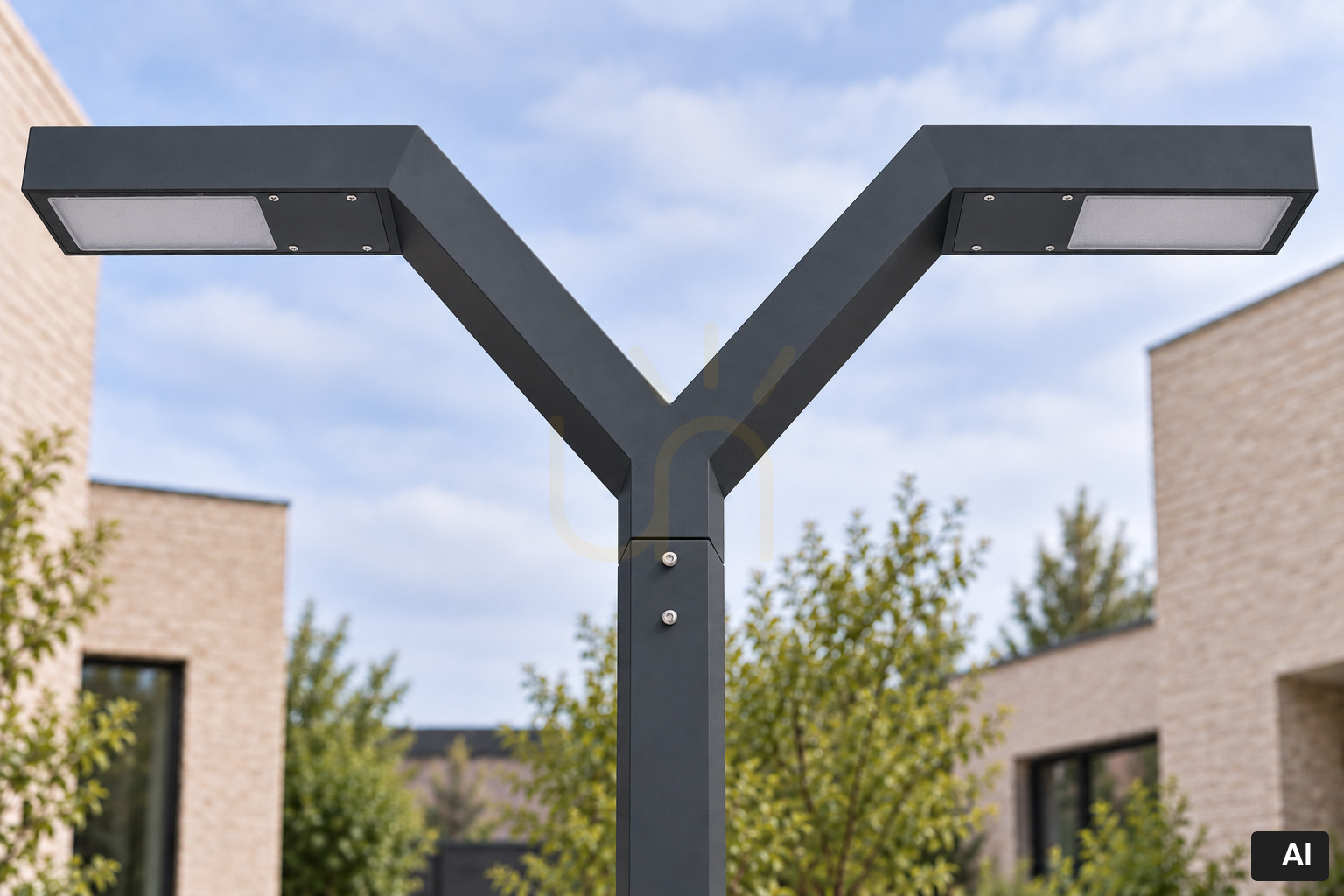

The TRYSIL 1002 garden lantern by Norlys in graphite (RAL 7016) is a modern, architectural pole light with an angled, bent form. The aluminium pole is topped with a projecting arm holding an LED panel that directs light downward, producing a glare-free, diffused, hemispherical beam.

Key features

• Height 263 cm, depth 118 cm, width 24 cm — a slim, elegant silhouette.
• Integrated 40 W LED source, light output 3901 lm, efficacy 97.5 lm/W.
• Warm 3000K light colour, colour rendering index CRI 80, SDCM3 chromaticity.
• 4 light points, light effect: diffused hemispherical light directed downward.
• BUG rating B2-U2-G1 — limited upward and sideways light spill, favourable for reducing light pollution.
• IP65 protection, IK10 impact resistance.
• Shade in transparent, structured PC plastic, with a double silicone gasket.
• DALI2 control compatible, power factor PF 0.96, UV filter.
• Energy efficiency class C, electrical protection class I.

Use

The TRYSIL lantern suits lighting for gardens, parks, pathways, driveways, and commercial spaces such as hotels and restaurants. Its precisely downward-directed light minimises upward and sideways spill, making it a good choice for spaces that care about limiting light pollution.

Mounting and compatibility

The lantern is permanently ground-mounted (double fixing). Connection is via terminal blocks up to 5×4 mm², or looped up to 5×2.5 mm², with a round-jacketed cable up to ø13.6 mm in diameter. The fixture ships with an integrated LED source — no separate bulb needs to be sourced — and is compatible with DALI2 control systems.

Technical data

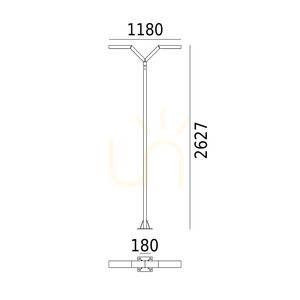

• Dimensions: height 263 cm, depth 118 cm, width 24 cm
• Power: 40 W, light output: 3901 lm, efficacy: 97.5 lm/W
• Colour temperature: 3000K, CRI: 80, SDCM3
• Supply: 230 V, power factor: PF 0.96
• Protection: IP65, impact resistance: IK10
• Material: aluminium (painted aluminium profile), shade: transparent structured PC plastic
• Colour: graphite (RAL 7016)
• Net/gross weight: 21.3 kg / 23.7 kg
• Country of origin: European Union
• Manufacturer warranty: 5 years, anti-corrosion warranty: 25 years

The TRYSIL 1002 is a rugged, energy-efficient garden lantern combining a modern architectural form with professional technical specifications — a good choice for both private gardens and public spaces.
