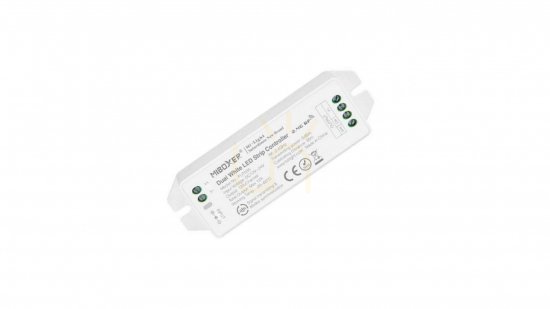

Mi Boxer RECEIVER 12A RF 2.4G 4 ZONE CCT FUT035U

MiBOXER receiver allows you to control LED tape. The connection between the receiver and the remote control is made using 2.4GHz radio waves. The receiver is mounted between the LED strip and the power supply, so it can be added at any stage of the strip installation.

Diagram of the connection of LED power supply, driver and LED tape

The receiver allows you to control the LED CCT tape. The receiver can be paired with a MiBOXER series remote control or, when paired with a Wi-Fi gateway, expand the receiver's capabilities to include app-based or voice control.

The receiver allows control using apps and voice assistants. This requires pairing with a Wi-Fi gateway (sold separately). Use the app to adjust the lighting to the rhythm of your day. Reducing the brightness of the light at night or turning on the lights in a room in the morning - many possibilities from a single application.

The device is characterized by the ability to transmit a signal from the receiver to another device, increasing range. Signal transmission is possible when the distance between consecutive devices is less than 30m

Possibility of signal transmission and synchronization

Pairing the remote control with the receiver is extremely easy. Perform the action of disconnecting the main power supply from the receiver (1), and then reconnect the power supply, where in the first 3 seconds briefly hold the previously selected channel on the remote control (2) respectively. The result of the correct pairing of the devices will be the blinking of the LED strip (3) three times.

Diagram of pairing the receiver with the remote control

Dimensions 119x37.5x22mm Voltage DC 12V-24V Working range 30m Operating current 6A per channel Maximum load 12A Frequency 2.4 GHz Wi-Fi control with Wi-Fi gateway Output connection common anode Autotransmission yes
