NORLYS Mora 6460CS rust-coloured LED pole-top luminaire 3000 K

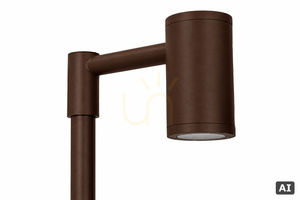

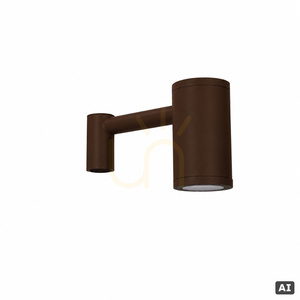

NORLYS Mora 6460CS is a single LED pole-top luminaire, not a complete lantern supplied with a pole. A horizontal arm joins the cylindrical light head to its mounting sleeve. The manufacturer calls the CS colour Corten Steel, but the housing itself is made from an extruded, powder-coated aluminium profile.

Check the pole before choosing the head

The luminaire measures 46.5 cm long, 15 cm wide and 27 cm high. These are the dimensions of the head, not the overall height of the finished lighting installation. Its mounting sleeve is designed for a pole spigot with a diameter of 60 mm. Compare that requirement with your chosen pole before ordering. Other mounting accessories must be purchased separately.

A 6.5 m H05VV-F 5G1 cable runs inside the pole and connects within a suitably selected electrical junction box. Installation requires a qualified professional. The luminaire's IP65 protection and IK08 impact rating do not replace correct cable termination or proper installation of the complete assembly.

Output at the luminaire, not just the LED

The integrated LED module provides warm white light at 3000 K. Light output from the luminaire is 1626 lm, whereas the module itself produces 2501 lm. When comparing lighting for a driveway or garden path, use the first figure: it represents the light remaining after passage through the optical system. The luminaire consumes 17.6 W.

The driver supports DALI2 / NightDim. Agree the required operating settings with the manufacturer rather than assuming a particular factory night-dimming schedule. Both the LED light source and control gear can be replaced by professional service personnel. This is not a fitting designed for routine replacement of a conventional bulb by the user.

A restrained form for outdoor layouts

Mora is intended for driveways, garden avenues and public outdoor spaces. Its cylindrical head and simple arm suit modern and minimalist layouts. Clear safety glass closes the optical compartment, with a silicone gasket and EPDM cable gland forming part of the construction. When planning distances between poles, consider mounting height and the manufacturer's photometric data; the head's dimensions alone do not establish the area that will be illuminated.
