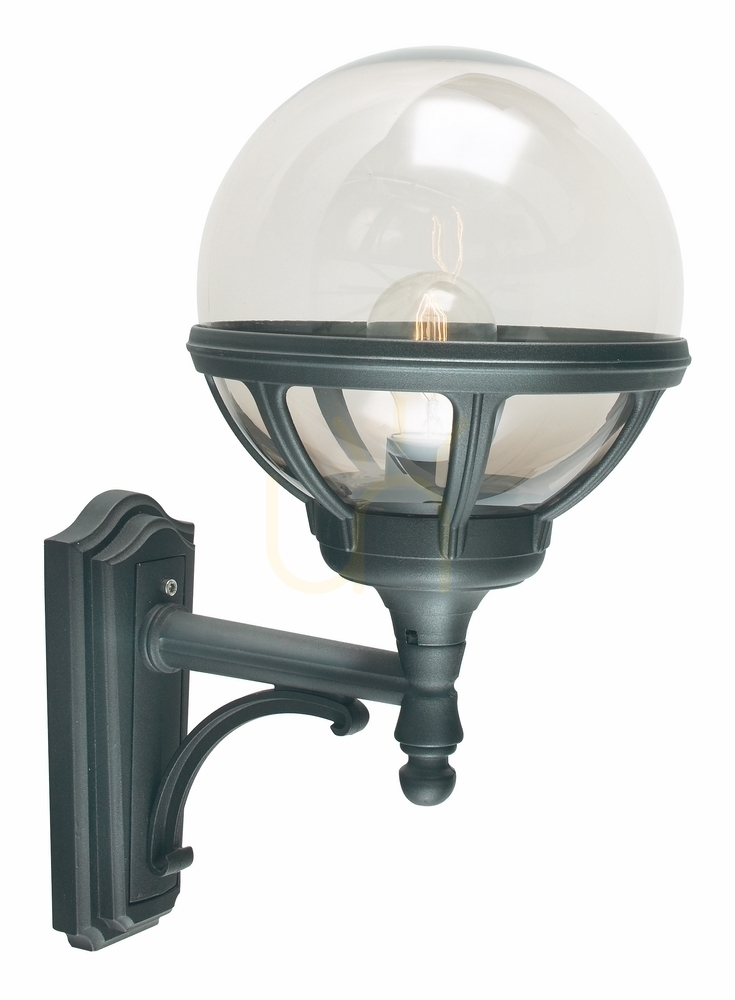

Bologna 360BL is an outdoor wall light with a clear 25 cm globe set on an upward arm. The body, arm and wall plate are cast aluminium, powder-coated in black (RAL 9005), and the globe is clear PMMA plastic. Norlys describes the design as classic: the globe sits in an open-work cradle and the arm is braced by a curved decorative bracket.
Dimensions and wall mounting
The light is 48.5 cm high and the globe projects 34.5 cm from the wall – a figure worth checking against an outward-opening door next to it and the width of the path below. The wall plate is 23 cm high. The luminaire weighs 1.8 kg; in its 49 × 37 × 32.5 cm carton it weighs 2.9 kg gross.
It is fixed through four ø5 mm holes at 25 × 140 mm spacing. Norlys also allows mounting on the corner of a building, which needs the corner bracket 152XX0009, sold separately. The terminals take conductors up to 2 × 2.5 mm². The luminaire is protection class II, so no protective earth is required.
Light source
The globe holds one E27 lampholder for an A55–A60 LED bulb of up to 9 W. The bulb is not included, so you choose its colour temperature and brightness yourself, and you change it without calling a service technician. On request Norlys supplies the light with a Philips Master LEDbulb 806 lm / 8.5 W / 2700 K: the brightness of an old 60 W bulb in a warm, yellowish white. That lamp is dimmable; with any other bulb, dimming depends on the bulb and the dimmer.
The globe is clear and the light is unshielded, so the bulb stays visible and its shape becomes part of the look.
Weather resistance, spare parts and use
IP54 means protection against dust and against water splashed from any direction, so the light can hang on an exposed façade. The luminaire works at ambient temperatures from −20 to +45 °C. The globe is available as service kit 06360008, so a cracked shade is replaced without buying a new luminaire.
The light is intended for house façades and for the wall by the entrance of a hotel or restaurant. The Bologna series also offers the same wall light with an opal globe (361) and versions on a downward arm (310 and 311).
