Steinel IS 3360 KNX V3 AP motion and presence detector square black

KNX detector for expansive areas

The black, square STEINEL IS 3360 KNX V3 AP is a surface-mounted motion and presence detector for ceiling installation. It communicates on the KNX bus and is configured in ETS, so it is intended for a professionally planned building-automation installation. Its UV-resistant plastic housing measures 65 × 95 × 95 mm and has IP54 protection.

Detection coverage and mounting height

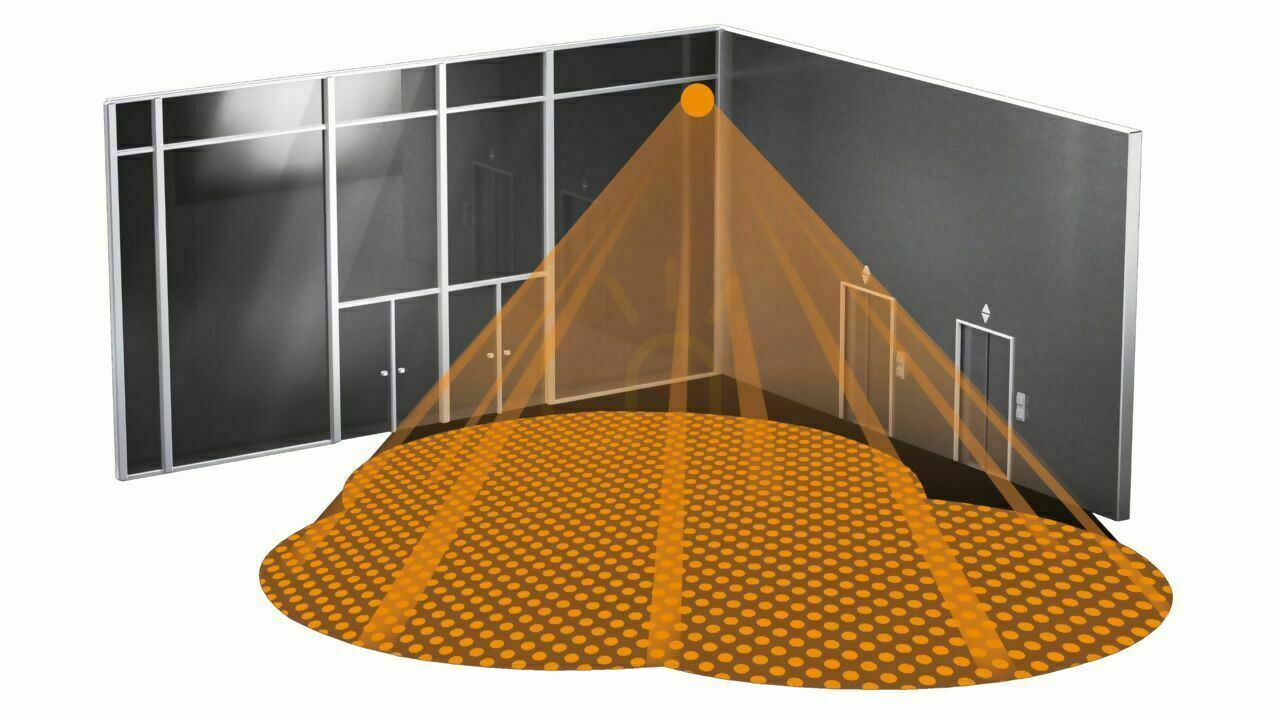

Passive infrared technology provides 360° detection. Tangential reach is up to 20 m, equal to a 40 m diameter and an area of up to 1257 m². Radial reach is 8 m, while presence detection reaches 3 m. STEINEL specifies a mounting height of 2.5–4 m, with 2.8 m as the optimum. These figures suit stairwells, multi-storey or underground car parks, halls and warehouse areas.

KNX functions

• KNX TP 256 bus connection; the device must not be connected to 230 V AC;
• 2–1000 lx twilight threshold and Teach function;
• time setting from 5 s to 15 min. and 1416 switching zones;
• KNX functions for lighting control, presence output, HVAC and logic;
• masking for selected segments and sneak-by protection.

Range-limiting shrouds are included. The large terminal compartment supports wiring, while ETS, the bus, Smart Remote or a compatible remote control can be used for settings. Permitted ambient temperature is −20 to 50 °C. The sensor is suitable for indoor and outdoor locations in accordance with the installation design. A qualified KNX installer should complete installation and commissioning after checking the required coverage, ceiling height, bus topology and intended automation function.
