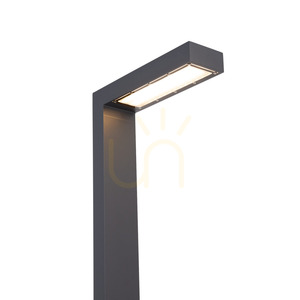

The Norlys Asker Pole Pro 1369GR is a graphite garden pole light shaped like an inverted L: a straight, rectangular pole turns into a short horizontal head that holds the LED module. The body is an extruded aluminium profile powder-coated in RAL 7016, and a transparent PMMA lens closes the underside of the head. What separates it from the 1367 of identical shape is DALI2 control.
Dimensions and where it stands
The light is 236 cm tall, the pole profile is 11 cm wide and the head reaches 39 cm out from the pole. It is a single-segment pole luminaire that the maker intends for private grounds and public spaces, not a low bollard for a flower bed. The 24 cm base plate is bolted down through four ø12 mm holes on a 200 × 200 mm pattern. The concreting anchor (index 116) and ground anchor (index 117) are sold separately, so choose the foundation before ordering.
IP65 and IK06 impact resistance allow it to stand outdoors without cover. Protection class I means it must be connected to protective earth; a licensed electrician installs and connects it.
How much light, and what kind
The Philips Fortimo LED module gives 3000 K, a warm white. The complete luminaire delivers 1130 lm at 8.6 W. The Ledil T2-L lens produces an IESNA Type III distribution: light spreads wide to the sides and forward, so the pole goes at the edge of a path rather than in the middle of the area. A ULOR of 0.87% means under one percent of the light goes upwards, so the sky above the garden stays dark.
The light source is not swapped like a bulb: the LED module and the driver are replaced by a qualified service technician, and the maker offers a service kit for it. Module life is rated at over 100,000 h (L90B10).
DALI2 control and looped wiring
The driver supports DALI2 and NightDim. Brightness can be set from a DALI installation, which needs a DALI controller; without one the light runs at full output. The driver ships set to the maximum permitted current; other settings are programmed by Norlys on request. The terminals take cables up to 5 × 4 mm² and let the supply loop on to the next pole in the row.
The plain, shade-less form suits modern, modernist and minimalist schemes. It fits a garden or a park as well as hotel and restaurant grounds.
