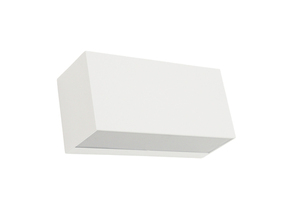

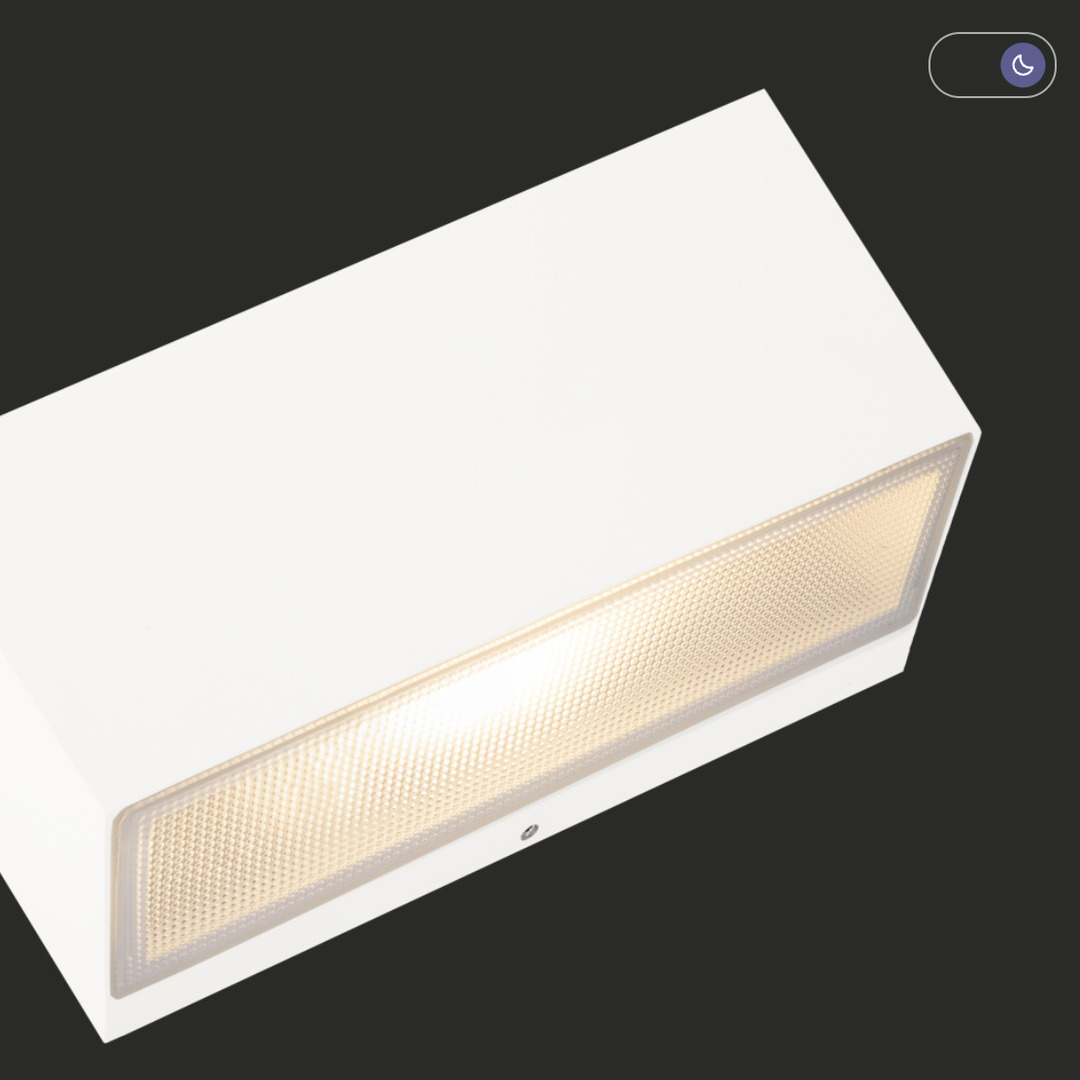

The Asker Small Pro 5160WH is a box-shaped outdoor wall light in cast aluminium, powder-coated white (RAL 9003). Covers of clear, textured, UV-stabilised polycarbonate close the top and the bottom, so the light shines upwards and downwards at the same time. The plain, sharp-edged body suits a modern, minimalist facade.
Size and mounting
The light is 22.5 cm wide and 11 cm high and projects 8.5 cm from the wall; it weighs 1.66 kg. It is fixed with two screws through ø4.5 mm holes at 180 × 60 mm centres. The terminals take conductors up to 5 × 2.5 mm², or up to 5 × 1.5 mm² when looping through to the next fitting, with a round cable of 7–10.5 mm diameter. The manufacturer states up to 80 fittings on a B10A breaker and up to 130 on a B16A. It is a class I luminaire, so the protective earth conductor must be connected.
What light it gives
The light draws 9.9 W and delivers 901 lm at 4000 K, a neutral white, with CRI 80. Two outputs — up and down — draw a band of light on the wall above and below the fitting, which brings out the texture of the facade and also lights the path along the wall.

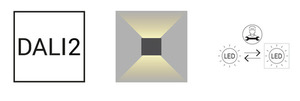

Brightness is controlled over DALI2: a DALI controller or gateway is needed, and an ordinary phase dimmer will not work with this light.
Durability and servicing
IP65 sealing allows mounting on an exposed wall without a canopy. The integrated LED module is rated above 72,000 h to L80 and above 64,000 h to L90, and the driver for 100,000 h. A professional service replaces the module and the driver using the manufacturer's service kit.
