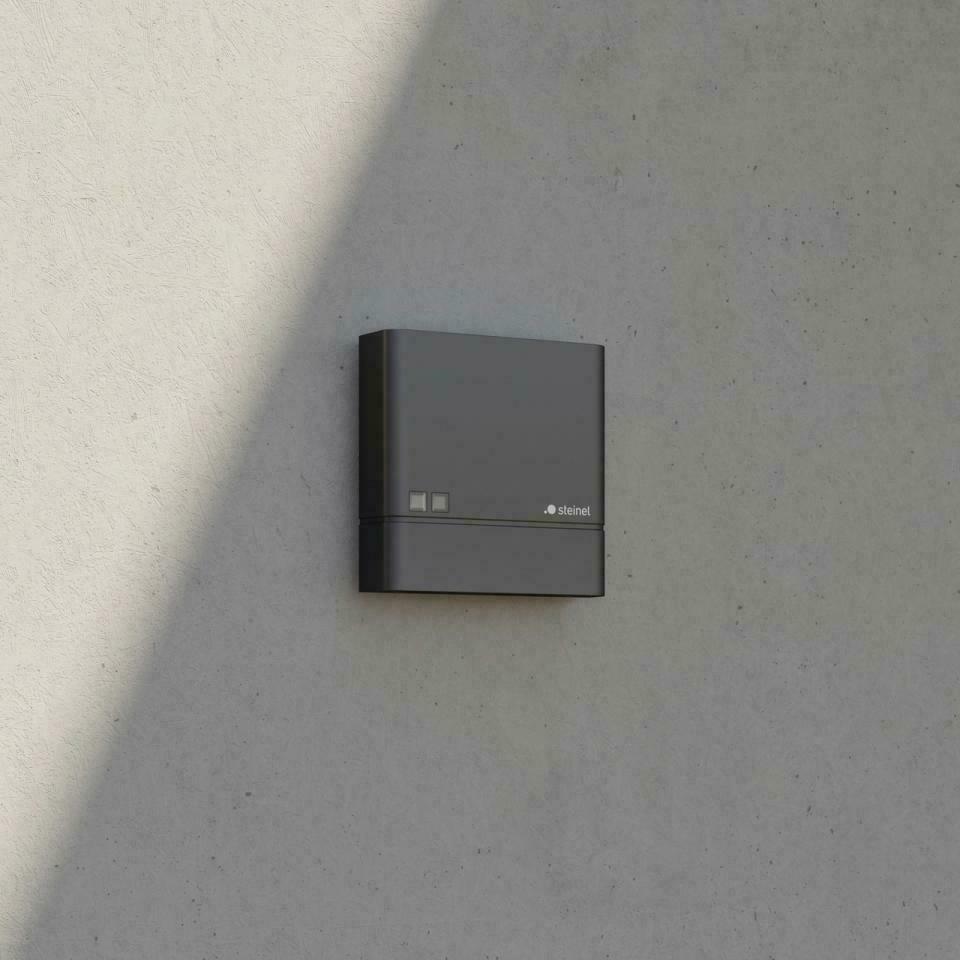

STEINEL NightmatIQ Plus 066116 is an anthracite photoelectric lighting controller for a hard-wired lighting circuit. It measures ambient brightness and can switch the circuit on at dusk and off again at dawn. Its flat UV-resistant plastic housing measures 38 × 95 × 95 mm and is intended for surface mounting on a wall.
Bluetooth Mesh setup
Settings are made through Bluetooth Mesh in the STEINEL Connect smartphone app. The twilight threshold can be selected from 1 to 1000 lx, with a timer, night mode and teach function also available. Compatible STEINEL Connect devices can be interconnected in master/master or master/slave arrangements.
Electrical data and placement
The controller operates on 220–240 V, 50–60 Hz and has a 0.5 W power consumption. Its resistive switching output is rated up to 1000 W. IP54 protection and an ambient temperature range of −20 to 40 °C support outdoor use at a façade, entrance, terrace, balcony or driveway. Mounting accessories are included.
