Norlys Egersund Park 6105AL Light Grey LED Park Lamp Post 9.1 W 3000 K 250 cm

Egersund Park 6105AL is a complete 250 cm park lamp post: a slim aluminium column 12 cm in diameter, topped by a clear PMMA cylinder that houses an LED module. The whole post is powder-coated in light grey RAL 9006, and column and head arrive as a single luminaire, so no separate pole has to be sourced.

Height, mounting and what to order separately

At 2.5 m it lights from well above head height. It is fixed to the ground with three bolts through ø9 mm holes set at 120° on a ø65 mm circle. No foundation is included: the concrete anchor 6130XX0009 and the mounting adapters 6132GA0009 and 6133GA0009 are sold separately by the manufacturer, so they belong on the same order.

Near the base there is an inspection door with a sealed IP68 junction box behind it. Its terminals take conductors up to 2×4 mm² and allow loop-through to the next luminaire (up to 2×2.5 mm²), so a row of posts along a path can be fed by one cable running from post to post. The luminaire's side area is 0.33 m², the figure that sets the wind load when the foundation is sized.

What light it gives

The LED module draws 7.4 W, the whole luminaire 9.1 W, and 907 lm leave the fitting, a little more than an old 60 W bulb. 3000 K is warm white, and CRI 80 renders plants and paving faithfully. The light source is built in; no bulb is needed. Distribution is symmetrical and aimed downwards: ULOR 1% and the BUG rating B1-U1-G0 mean practically no light goes above the post, so it does not light up windows or the night sky. It can be dimmed with a phase dimmer and works with both trailing-edge and leading-edge types. Rated module life is L80 over 102,000 hours.

Build and where it can stand

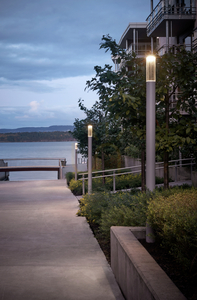

The body is cast aluminium, the diffuser clear PMMA, the gasket silicone. IP65 lets the post stand unsheltered in rain and dust. The column is rated IK10 for impact and the light chamber IK05, so the clear top section is the more delicate part. Protection class II means double insulation with no earth conductor. The plain cylindrical form without ornament suits modern architecture; the manufacturer intends it for parks and gardens and for hotel and restaurant grounds. Installation should be done by a qualified electrician.
