HF 360-2 KNX V3.5 AP W presence and twilight sensor.

Steinel HF 360-2 KNX V3.2 Presence Sensor Surface-mounted IP54 White Product Code 064860

Benefits of the HF 360-2 KNX V3.2 sensor for building automation

• Effective 360° detection for maximum space control - With a range of up to 12 m and high-frequency technology, the sensor reliably monitors movement even through thin partitions such as glass or lightweight partitions.

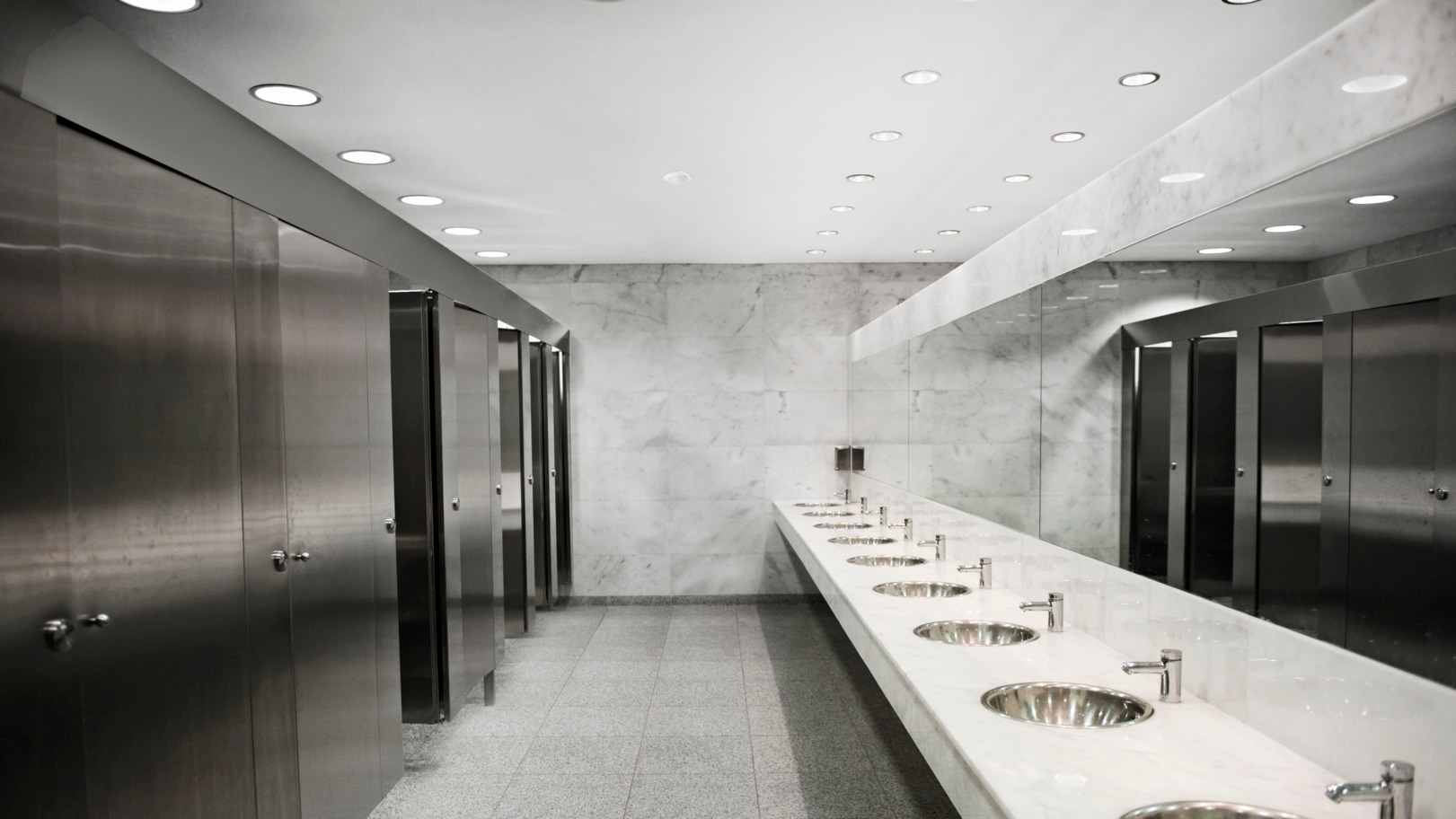

• Ideal for demanding utility spaces - Works well in public restrooms with cubicles, stairwells, locker rooms and other spaces with difficult visual access.
• Advanced integration with building automation systems - Full compatibility with KNX bus, DALI-2 APC, DALI-2 IPD, COM1, COM2 and Bluetooth IPD provides flexible lighting and HVAC management.
• Energy saving and intelligent control - IQ-mode automatically adjusts settings according to ambient conditions, optimizing energy consumption and increasing user comfort.
• Easy installation and convenient configuration - With the Bluetooth communication option, configuration and commissioning of the device is quick and intuitive.

Functions and applications of the HF 360-2 KNX V3.2 sensor

• Detection range of up to 12 meters over a full 360° range - An excellent choice for spaces requiring precise motion detection.
• Surface-mounted at a height of 2.5 - 4 meters - Flexibility in installation allows effective use in spaces with different ceiling heights.
• Programmable operating time from 5 seconds to 60 minutes - Ability to fine-tune sensor operation to suit individual needs.
• Ambient brightness range of 2 to 1000 Lux - Allows configuration according to natural light levels and user preferences.
• Compact and aesthetically pleasing design - The modern design of the Control PRO 2 series fits perfectly into modern interior designs.

Technical and logistical data of the product

• Device type: high frequency (HF) presence sensor
• Detection technology: HF 360°, electronic range adjustment
• Detection angle: 360°
• Detection range: up to 12 m
• Mounting height: 2,5 - 4 m
• Ambient brightness range: 2 - 1000 Lux
• Operation time settings: 5 seconds - 60 minutes
• Power supply: KNX bus
• Power consumption: < 1 mW
• Operating mode: IQ-mode, Bluetooth IPD
• Programmable outputs: light control, HVAC, presence output, day/night functions, logic gate
• Communication interfaces: KNX, COM1, COM2, DALI-2 APC, DALI-2 IPD, Bluetooth IPD
• Dimensions: 57 x 123 x 123 mm
• Color: white
• Housing material: plastic
• Product code: 064860
• EAN: 4007841064860
• Warranty: 5 years
