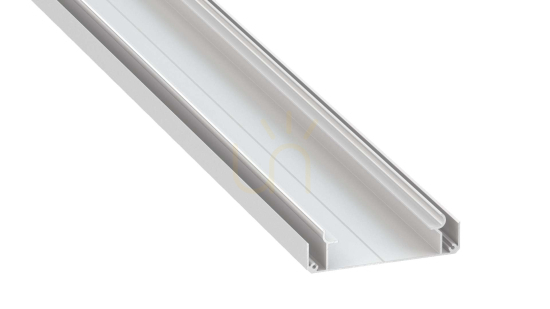

LARGO M1 mounting profile is one of four mounting profiles for LARGO surface profile. Installation of the LARGO profile in the LARGO M1 profile is carried out using the "click-click" method in a specially shaped groove, which facilitates the installation operation on the wall or ceiling.
For the LARGO M1 profile, a special system of LARGO profile connectors has been designed, which facilitates the installation of longer sections of profiles in one line.
Color versions:
- silver anodized profile,
- white lacquered profile (RAL9016)
- black lacquered profile (RAL9005 matt).
Mounting method:
- with mounting screws
The profile is sold in standard sections: 1000 mm, 2020 mm, 3000 mm.
Installation profile LUMINES profile Largo M1 Largo
Principle of assembly of the LARGO profile system with SUPER WIDE diffuser using the LARGO M1 mounting profile

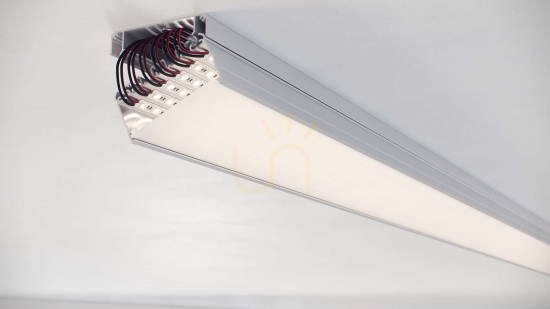

The final result of the assembly of the LARGO profile system with SUPER WIDE diffuser using the LARGO M1 mounting profile
Diagram of the assembly of lighting system elements using LARGO profile, (1) SUPER WIDE diffuser, (2) LED strips, (3) LARGO + M1 cap with hole, (3a), LARGO + M1 cap without hole, (4) gland, (5a) LARGO right connector, (5b) LARGO left connector, (5c) LARGO M1 connector, (6) LARGO M1 mounting profile
