LUMINES profile type Roset white lacquer. 2 m

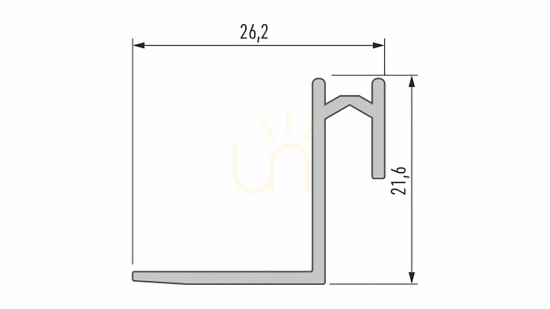

ROSET mounting profile is an auxiliary profile used with LARGO M4 and TALIA M4 lighting systems to attach the system to the wall or ceiling structure.

Color version:
- silver anodized profile
- white lacquered profile (RAL9016)
- black lacquered profile (RAL9005 matte).

Mounting method:
- with mounting screws attached to TALIA M4 and LARGO M4 profile.

Profile is sold in standard sections: 1000 mm, 2020 mm, 3000 mm.

Mounting profile LUMINES profiles Roset Largo M4, Talia M4

Principle of assembly of LARGO profile system with SUPER WIDE diffuser using LARGO M4 mounting profile, LARGO interprofile connector and ROSET auxiliary profile.

Installation instructions for TALIA profile using TALIA M4 mounting profile in the ceiling using ROSET auxiliary profile, TALIA interprofile connector and mounting screws

Diagram of the assembly of the elements of the lighting system in the ceiling using the LARGO profile, (1) SUPER WIDE diffuser, (2) LED strips, (3) LARGO cap with hole, (3a), LARGO cap without hole, (4) LARGO interprofile connector, (5) ROSET auxiliary profile, (6) LARGO M4 mounting profile, (7) LARGO M4 cap with straight finish, (7a) LARGO M4 cap with solid finish

Schematic of assembling the elements of the lighting system in the ceiling using inLARGO profile (1) SUPER WIDE diffuser, (2) LED strips, (3) inLARGO caps with hole, (4) straight connectors, (5) LARGO interprofile connectors, (6) ROSET auxiliary profiles, (7) LARGO M4 mounting profiles, (8) LARGO M4 cap with straight finish, (8a) LARGO M4 cap with solid finish

Schematic of assembling the components of a lighting system in a ceiling using TALIA profile, (1) DOUBLE diffuser, (2) LED strips, (3) TALIA cap with hole, (3a), TALIA cap without hole, (4) TALIA interprofile connector, (5) ROSET auxiliary profile, (6) TALIA M4 mounting profile, (7) TALIA M4 cap with straight finish, (7a) TALIA M4 cap with full finish
