LED profile LUMINES type J raw 1 m

Aluminum profile J is a furniture profile adapted to be placed in a milled hole. The profile is finished on one side, allowing it to be flush with a perpendicular surface.

LED strip width:
up to 12 mm

Color versions:

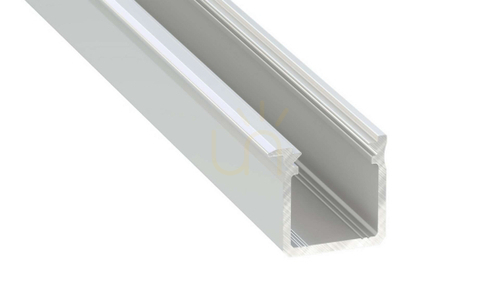

- raw profile,
- silver anodized profile,

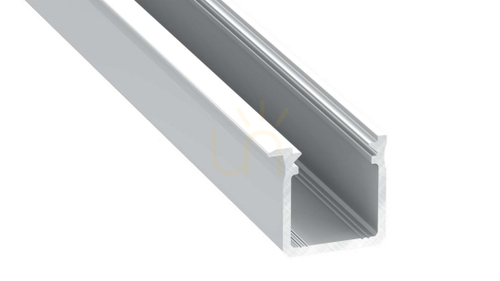

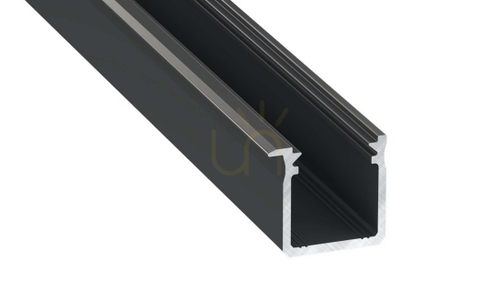

- black anodized profile,
- inox anodized profile,
- white lacquered profile (RAL9016)

Mounting method:
- pressed into a milled hole or with mounting glue

Accessories for J LUMINES aluminum profile

CLOSERS:
- BASIC
* transparent (PVC/PMMA/PC),
* frosted (PVC/PMMA/PC),
* milky (PVC/PMMA/PC),
* frosted milky (PMMA),
* lens 15 (PMMA),
* lens 30 (PMMA)
* black (PMMA)
Press-mounted from the top of the profile.

SEALS:

- made of plastic, with a hole in 4 color versions (white, black, inox, gray)

ADDITIONAL ACCESSORIES:
- non-contact switch

Profiles available in sections: 1000 mm, 2020 mm, 3000 mm.
Possibility to purchase longer sections after contacting the service office.

Installation instructions for recessed J profile with BASIC lampshade.

The final result of the installation of recessed J profile with BASIC lampshade.

Installation of the J-profile inside the milled hole above the kitchen countertop.

Ways of mounting profile J inside milled holes on the example of stairs.

Axonometric projection before installation of profile J inside a milled hole with a circular plug.

Installation of profile J inside a milled hole in a gypsum board.

Diagram of assembling the components of the lighting system using the J profile and (1) BASIC lampshade, (2) LED strip, (3) hole plugs.
